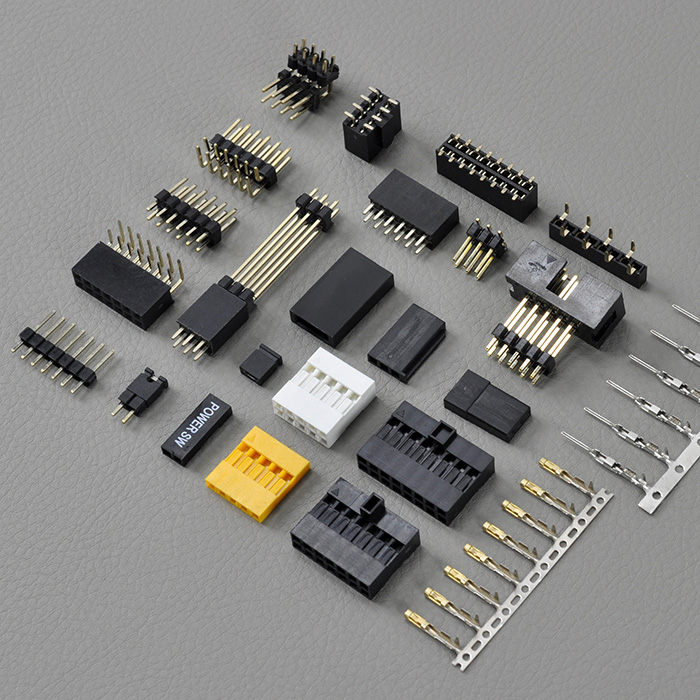

2.54mm pitch Dupont Wire To Board Connectors
Order information:
KLS1-540A-1×02-H
Type:540A,540AB

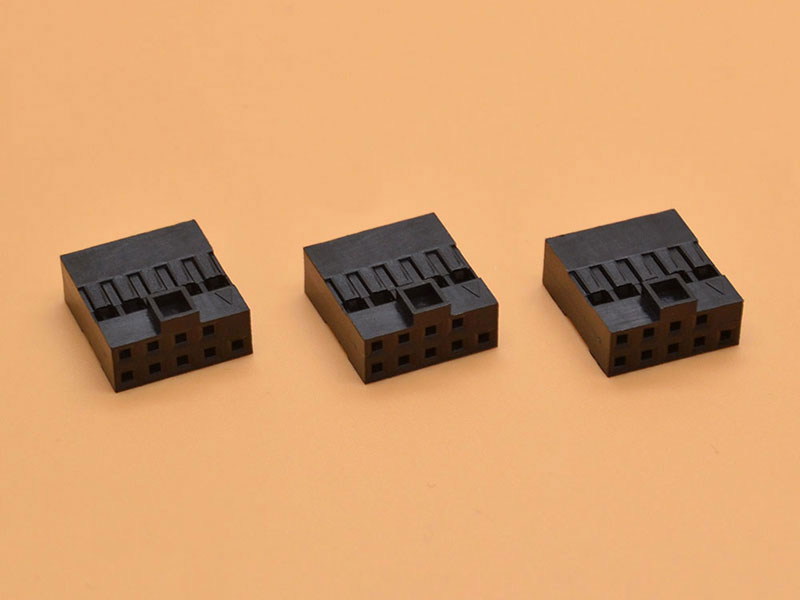

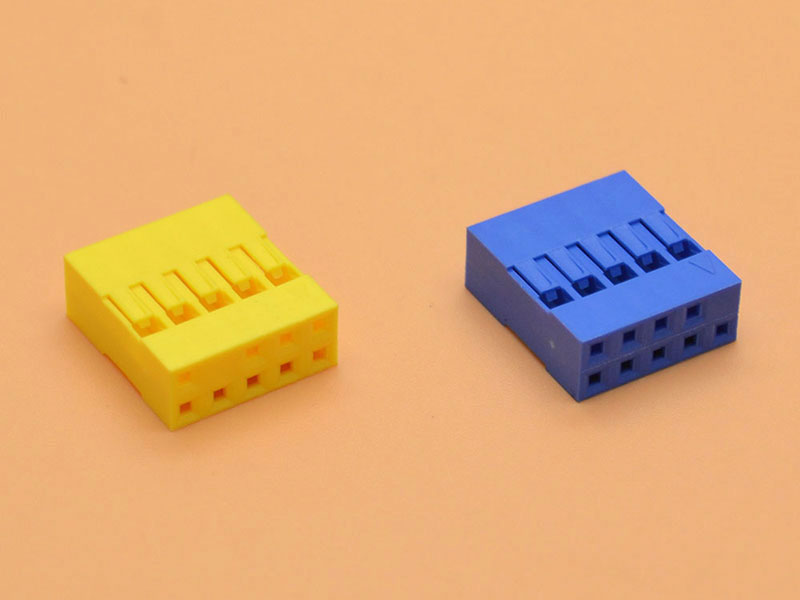

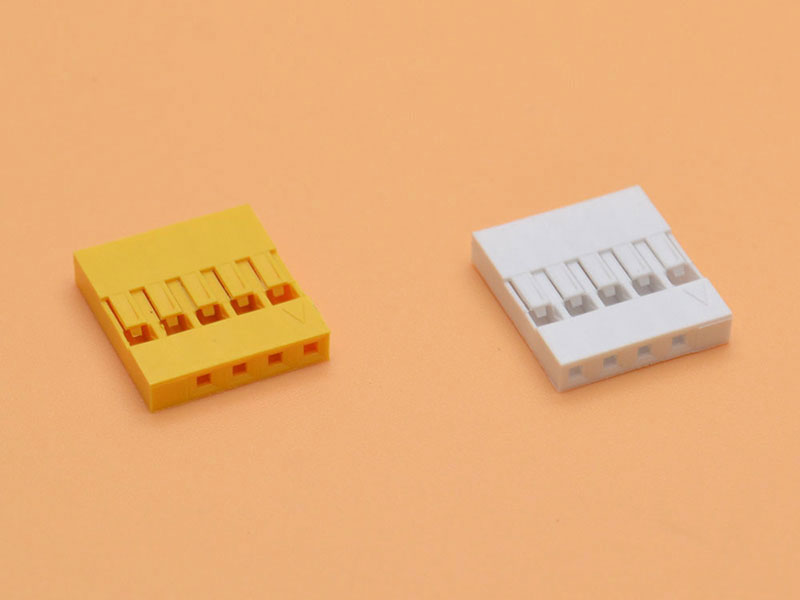

1-Single layer 2-Double layer
02-No.of 02~80 pins
H-Housing T-Terminal
Specifications
◆Material: PA66/PBT UL 94V-0
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#22~#26
