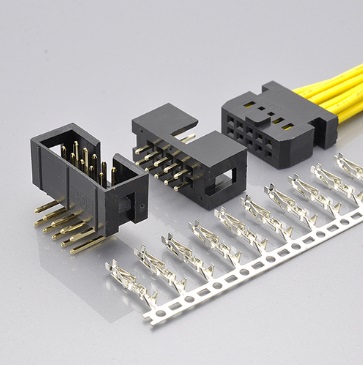

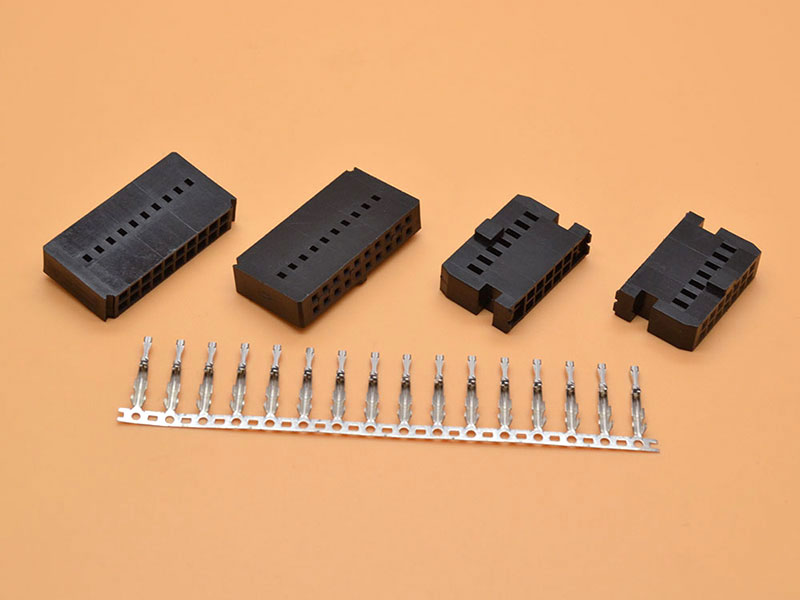

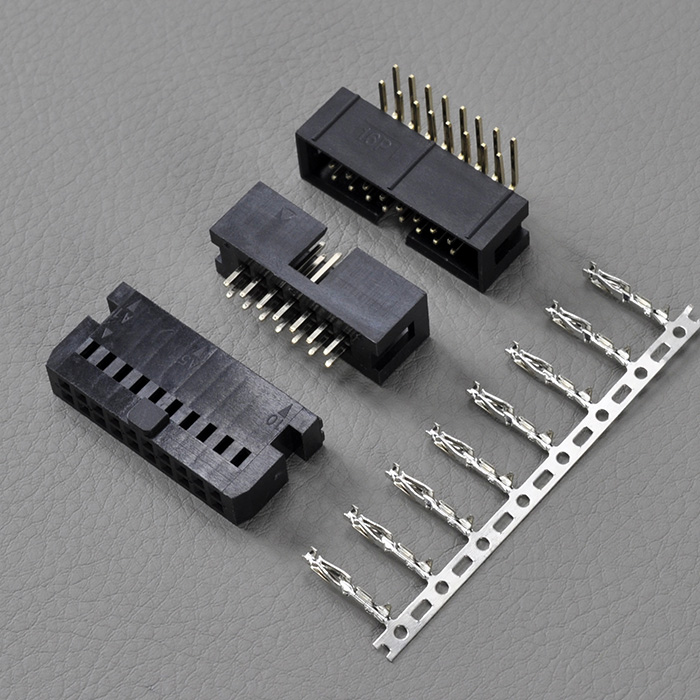

2.54mm pitch Dupont HRS2.54 Wire To Board Connectors
Order information:
KLS1-XL1-2.54-XX-H
Pitch:2.54mm
XX-No.of 04~64 pins
H-Housing  T-Terminal

Specifications
◆Material: PBT UL 94V-0
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#24~#28
Order information:
KLS1-XL1-2.54-04-H
Pitch:2.54mm
pins:4~64
H=Hosing / T=Terminal
Specifications
◆Material: PBT UL 94V0
◆Contact : Phosphor Bronze
◆Finish : Plated Tin or Gold Flash Lead over Nickel
◆Current rating:3A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-35℃~+85℃
◆Insulationresistance:1000MΩ/Min.
◆Withstanding voltage:1500V AC/minute
◆Contact resistance:20mΩ/Max.

KLS1-XL1-2.54.pdf
