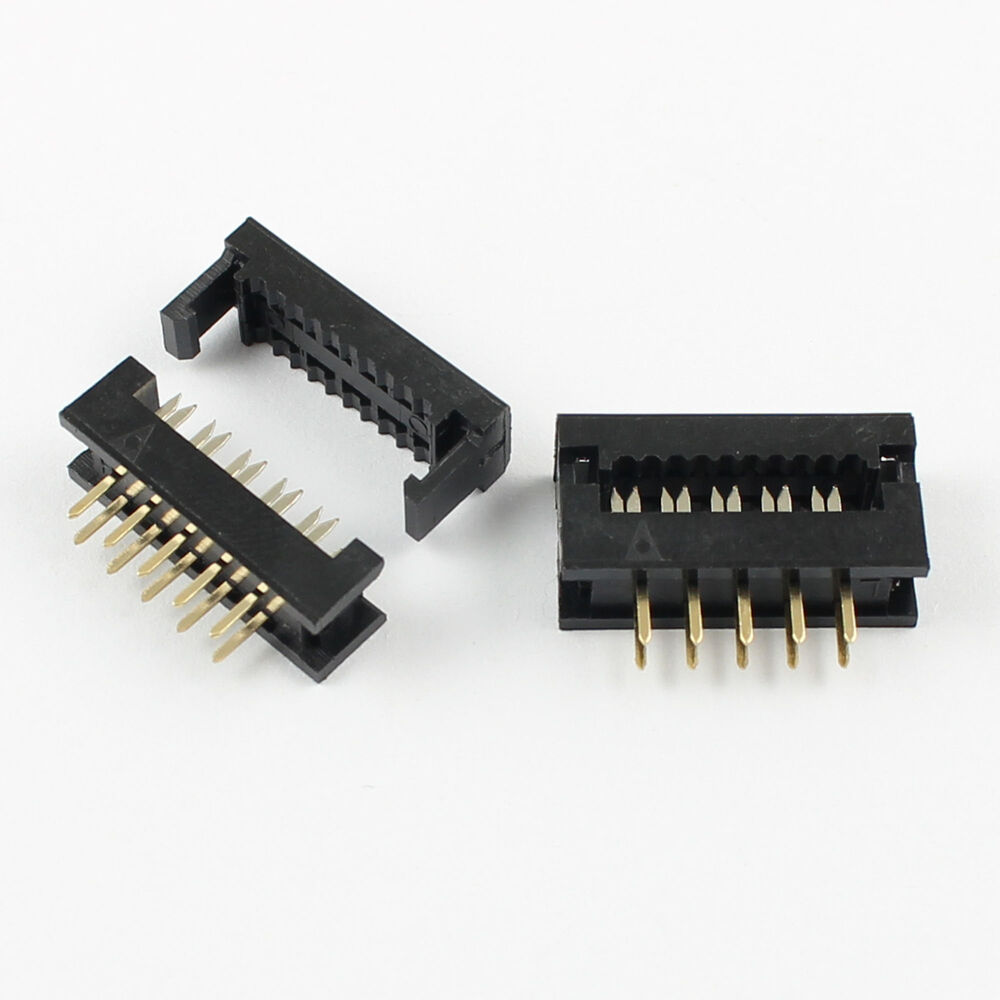

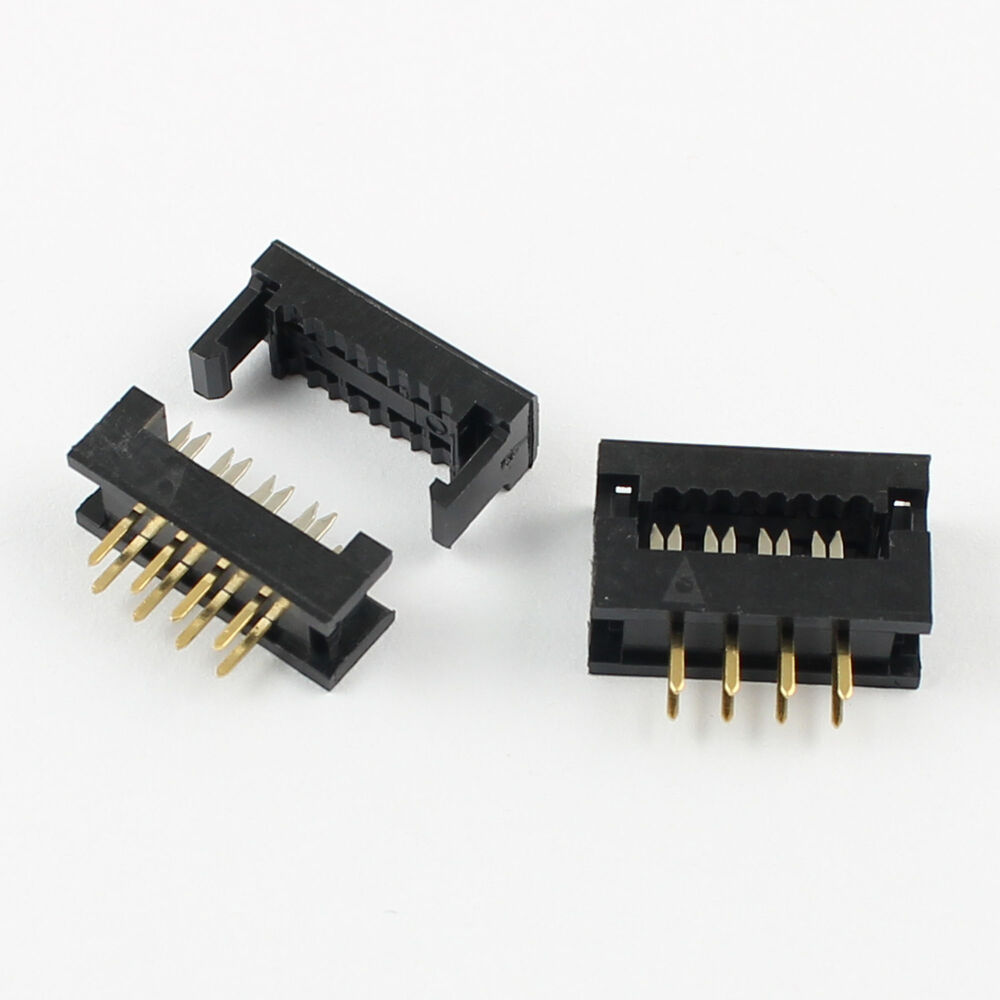

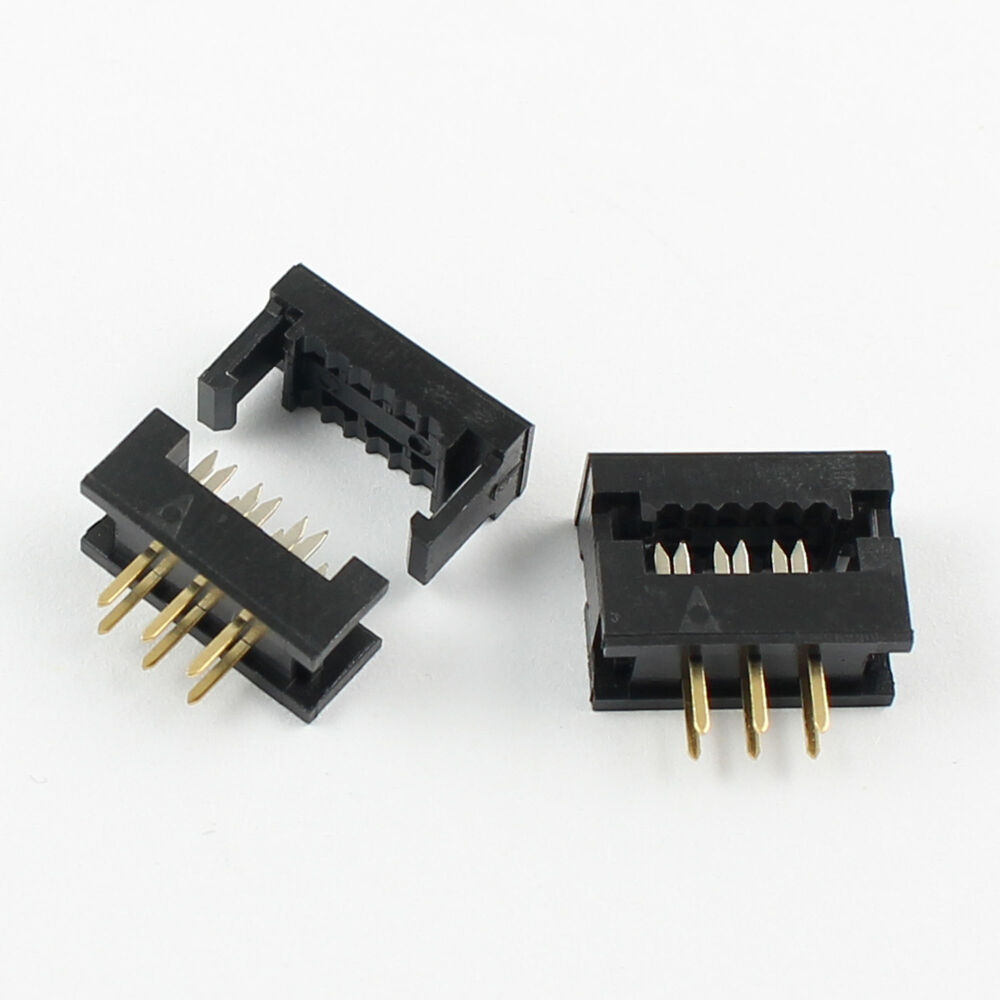

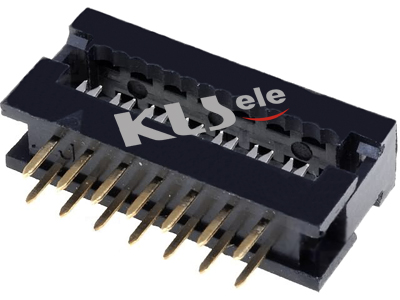

2.54mm Pitch Dip Plug Connector
Order Information:
KLS1-205-XX-B
XX-No.of 06~64pin
Color: B=Black   G=Gray
Material:
Housing: PBT UL94V-0, Black
Contacts: Brass
Plating:Au or Sn over 50u” nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 1000V AC / Minute
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

KLS1-205-XX-B.pdf
