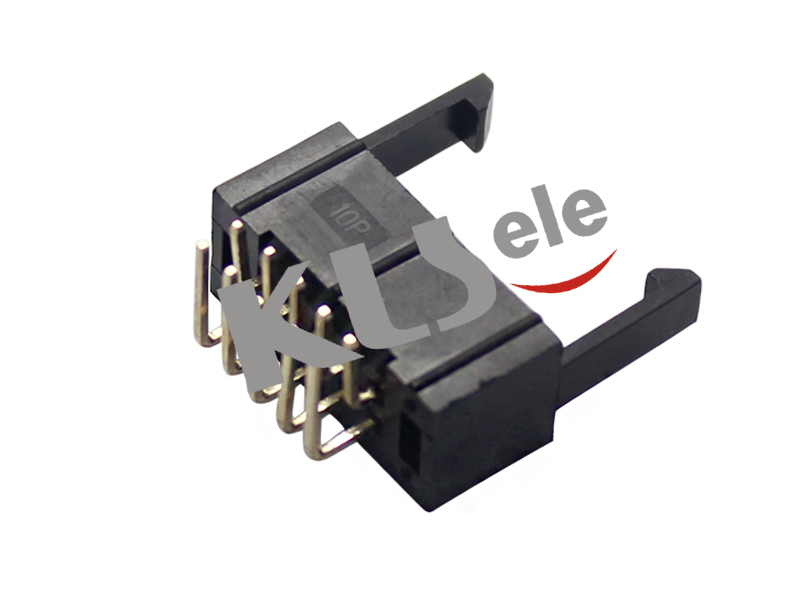

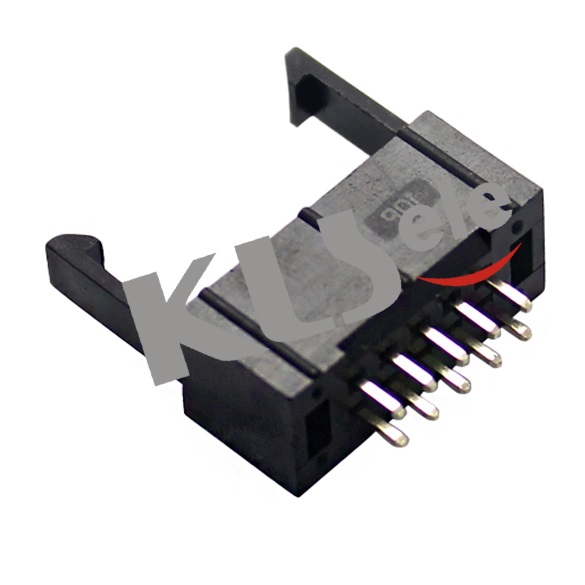

2.54mm Pitch Box Header Connector With Latch

Order Information
KLS1-202E-XX-S-B-L-B
XX-No.of 10~26pin
S-Straight pin R-Right Angle Pin T-SMT Pin
B-Black
L-Long tatch 8.0mm S-Short tatch 4.35mm
Material:A=PBT B=PA6T

Material:
Housing: PBT UL94V-0 / PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u” over 50u” nickel
Electrical Characteristics:
Current Rating: 3 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:1000V AC/DC
Operating Temperature: -45ºC~+105ºC
