2.54mm Pitch Box Header Connector

Order Information
KLS1-202G-XX-S-B-D1-口
XX-No.of  06~64pin

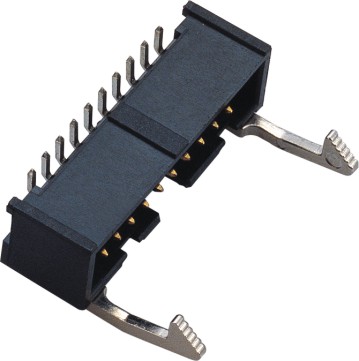

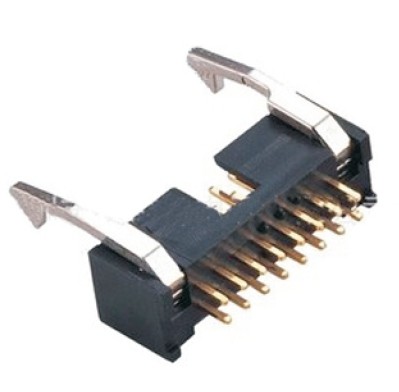

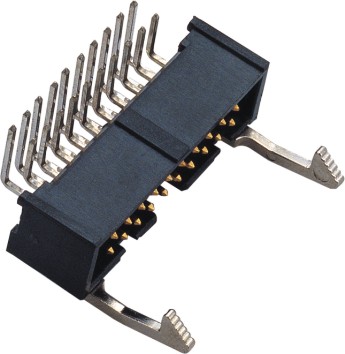

S-Straight pin  R-Right Angle Pin   T-SMT Pin
B-Black  G-Gray    L-Blue
D-Long tatch 14.5mm   D1-Short tatch 10.65mm
Material_NONE=PBT  B=PA6T

Material:
Housing: PBT UL94V-0 / PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u” over 50u” nickel
Electrical Characteristics:
Current Rating: 3 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:1000V AC/DC
Operating Temperature: -45ºC~+105ºC
