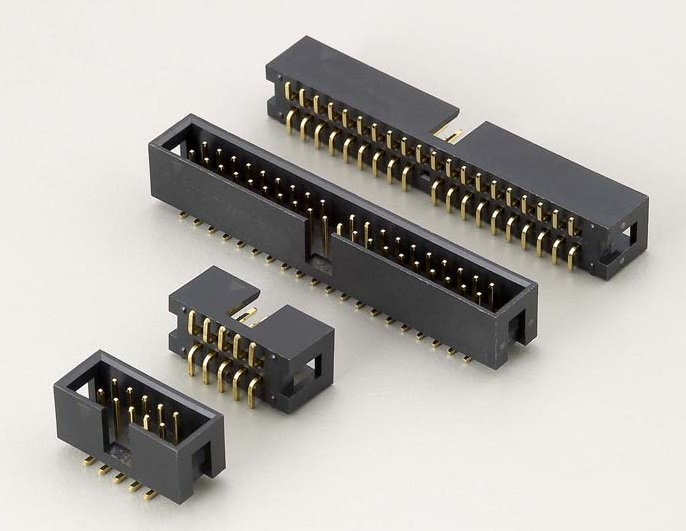

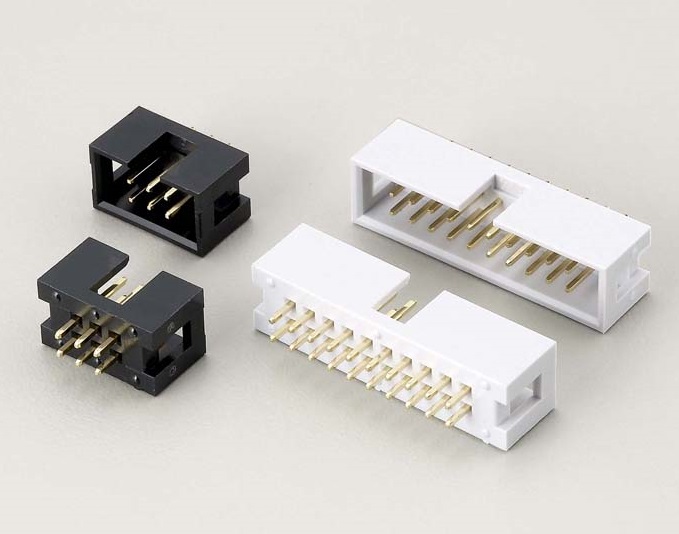

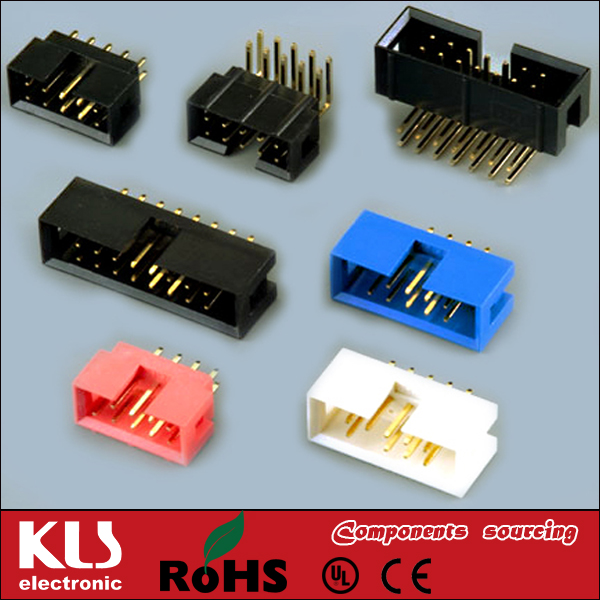

2.54mm Pitch Box Header Connector

  • Model: KLS1-202
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.54mm Pitch Box Header Connector

Order Information
KLS1-202-XX-S-B-口
XX-No.of 06~64pin

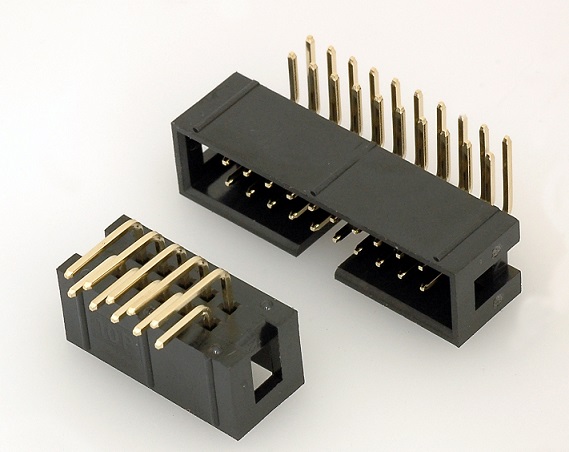

S-Straight pin R-Right Angle Pin T-SMT Pin
B-Black G-Gray L-Blue
Material: None=PBT B=PA6T
Material:
Housing: PBT UL94V-0 / PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u” over 50u” nickel
Electrical Characteristics:
Current Rating: 3 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:1000V AC/DC
Operating Temperature: -45ºC~+105ºC
