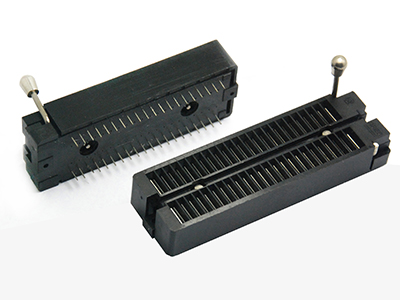

2.54mm Pitch ARIES ZIP Socket Connector

Order Information
KLS1-108M-XX
XX-No.of 24~48pin

Specification:
Material:
Housing: 30% Glass filled PBT UL 94V-0
Contacts: Phosphor Bronze
Plating: Gold plated: 3u” over 50u” nickel
Tin plated: 100u” over 50u” nickel
Electrical Characteristics:
Current rating: 1AMP.
Insulator resistence: 5000MΩmin, at DC 500V
Contact resistence: 20MΩmax, at DC 100mA
Operating Temperature: -55°C~+105°C
Features:
For DIPs with. 070″ lead spacing
Lever actuated zero insertion force mechanism
Socket easily disassembles for repair ability

KLS1-108M.pdf
