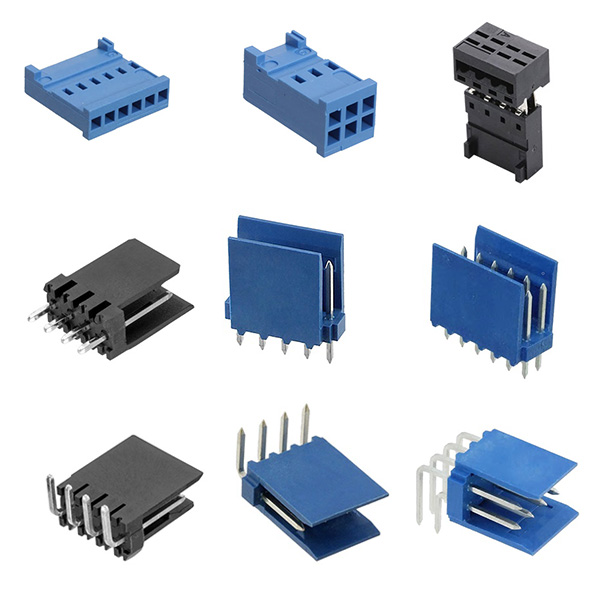

2.54mm Pitch AMP 281695 Wire To Board Connector
- Product Details
2.54mm Pitch AMP 2816959 Wire To Board Connector
Order information:
KLS1-TE-2.54-1×02-H
Pitch:2.54mm

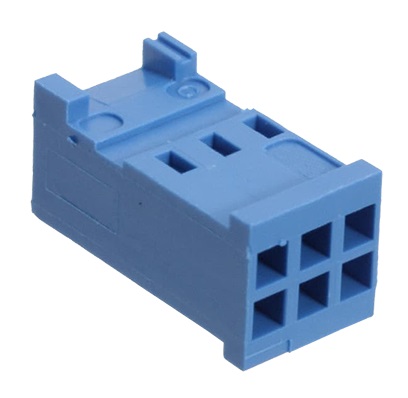

1-Single layer 2-Double layer
02-No.of 02~36 pins

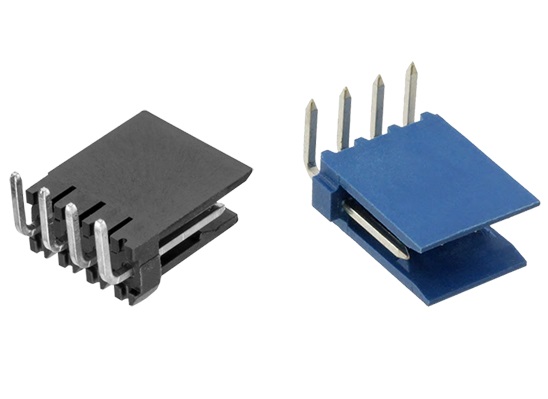

H HK-Housing T-Terminal S-Straight male pin R-Right angle male pin
Specifications
◆Material: PA66/PBT UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#22~#26
