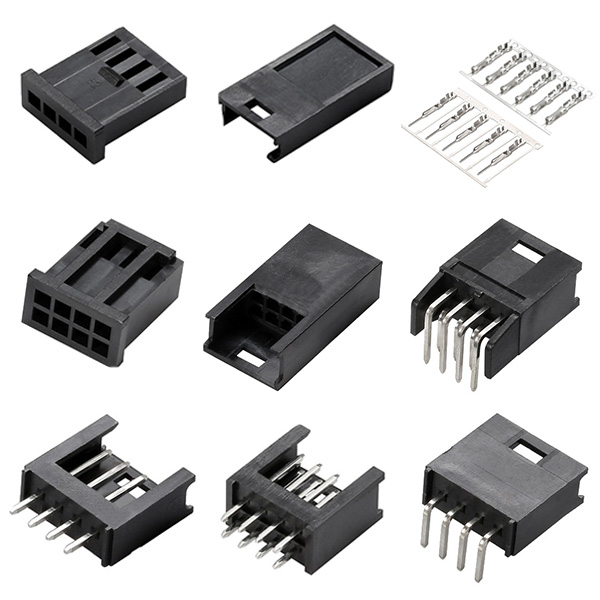

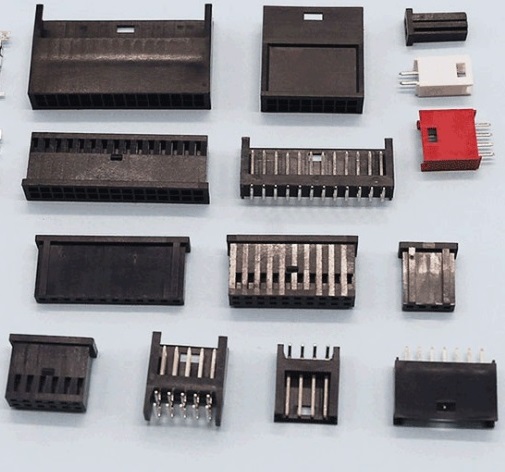

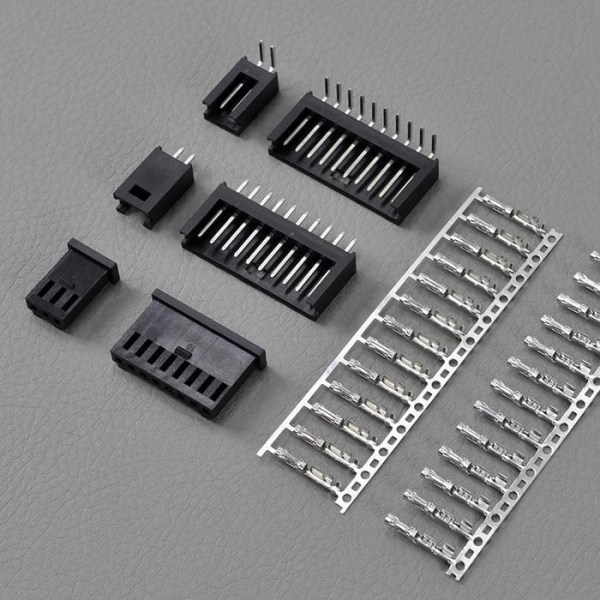

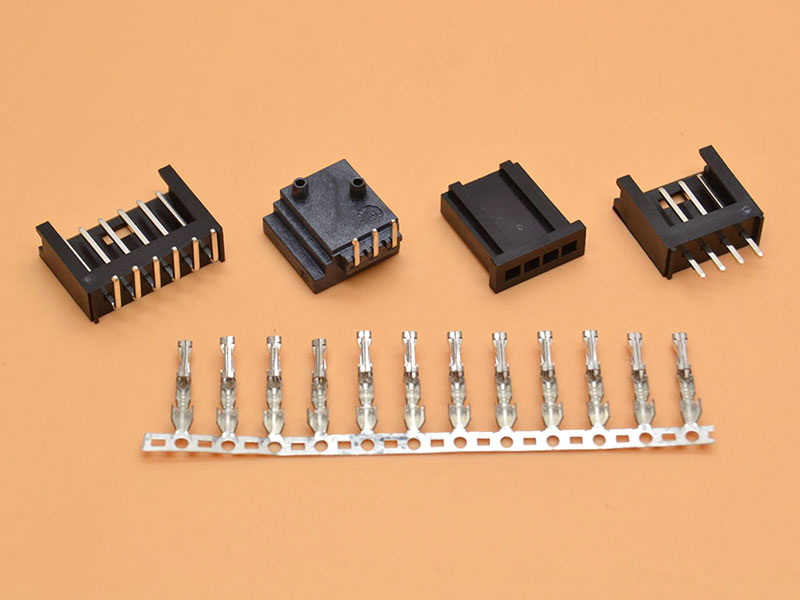

2.54mm Pitch AMP 280358 280370 280377 280365 280384 280389 Wire To Board Connector
Order information:
KLS1-XL5-2.54-1×02-MH
Pitch:2.54mm
1-Single layer 2-Double layer
02-No.of 02~64 pins
MH FH-Housing MT FT-Terminal S1 S2-Straight male pin R1 R2-Right angle male pin
Specifications
◆Material: PA66/PBT UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#22~#26
