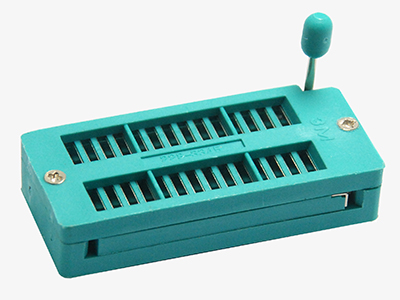

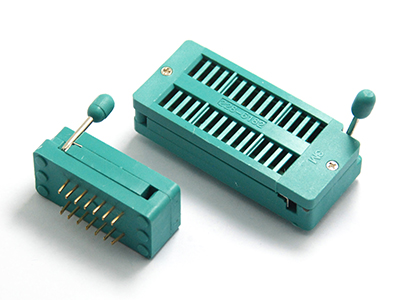

2.54mm Pitch 3M ZIP Socket Connector
- Product Details
2.54mm Pitch 3M ZIP Socket Connector
Order Information
KLS1-108X-XX
XX-No.of 24~48pin
Materials：
Compact mechanical construction to ensure long term life.
Zero insertion and extraction pressure.
standard 0.100(2.54mm) IC pitch, easy to mount in PC board.
All plastics are UL 94v-0 grade fire retardant.
Gold plated or Tin Plated contact to ensure low contact resistance and
long operation life.
1. Electrical Specifications：
Contact Rating:50V DC,100mA.
Contact Resistance: 50mΩ max.
Insulation Resistance: 100M Min.
Dielectric strength: 500V DC min. for 60 seconds.
2. Mechanical and Enveronmental Specifications：
Operating Temperature: -40℃ to +105℃
Storage Temperature: -20℃ to +70℃
Operating Life:25,000 cycles
Humidity:95%RH,40℃ for 96 Hrs.
Vibration: Per MIL-STD-202F, METHOD 201A
Solderability: After flux 230℃ for 5 0 .5 Seconds,95% coverage
Soldering Heat:260 5 ℃ for 5 1 S econds
