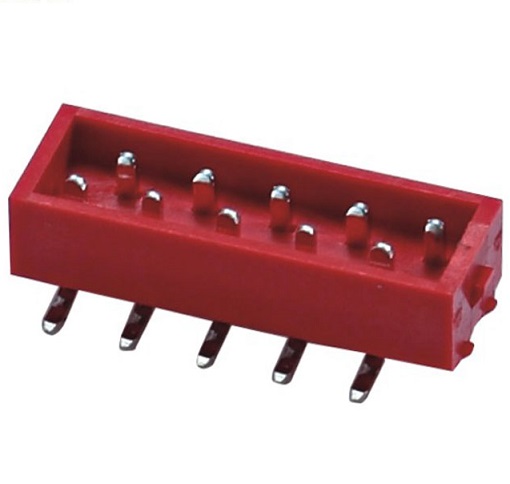

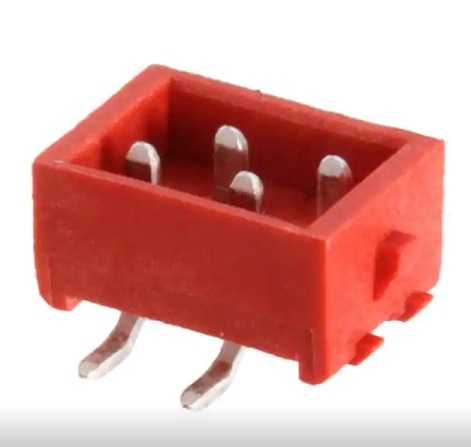

2.54mm Micro Match Connector Male SMD Type

  • Model: KLS1-204H
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Micro Match Connector Male SMD Type

Order Information:
KLS1-204H-XX-R-口-口
XX-No.of 04~26pin
Color: R=Red B=Black
Material: NONE=PA9T D=PA6T E=PA46
Packing: NONE=Tube R=Reel

Material:
Housing: PA46/PA6T/PA9T UL94V-0
Contacts: Brass
Plating: Sn over 50u” nickel

Electrical Characteristics:
Current Rating: 1.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage: 500V AC
Operating Temperature: -40ºC~+105ºC
