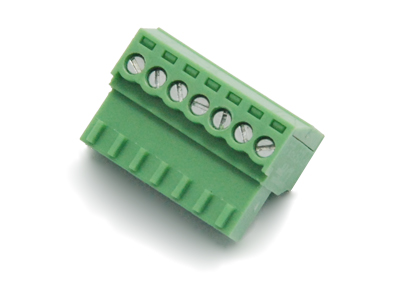

2.54mm Male Pluggable terminal block
- Product Details
2.54mm Male Pluggable terminal block
Electrical:
Rated voltage: 125V
Rated current:4A
Contact resistance:20mΩ
Insulator Resistance:5000MΩ/1000V
Withstanding Voltage: AC1250V/1Min
Wire range:28-20 AWG 0.5MM2
Temp. Range:-40ºC~+105ºC
Material:
Housing: PA66, UL94V-0
Pin header:Phosphor bronze, Zinc Plated
