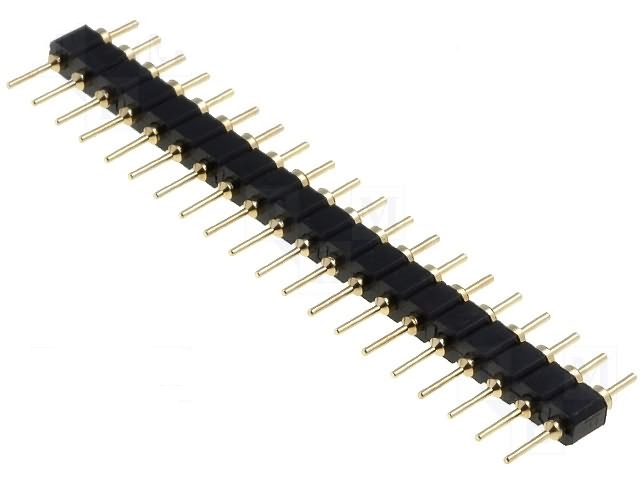

2.54mm IC Swiss Round Pin Header Connector

Order Information
KLS1-209X-1-XX-S
1-Single layer 2-Double layer
XX-Total pin number (No.of 1~80pin)

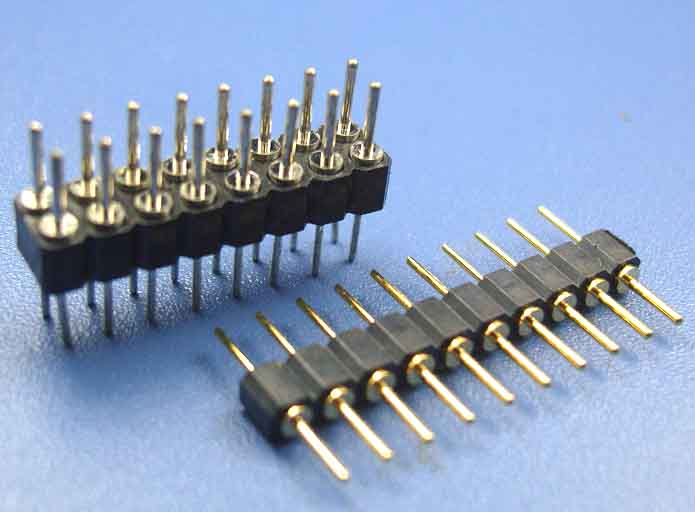

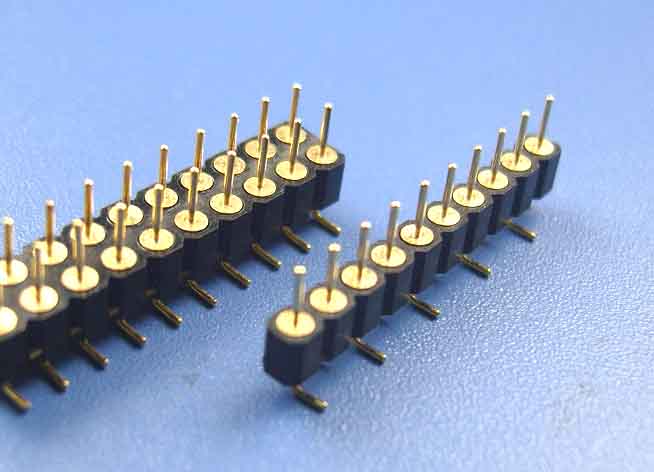

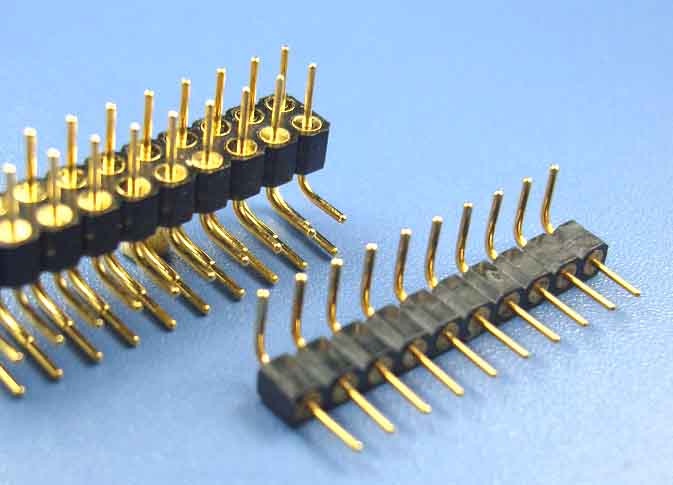

S-Straight Pin 11.96mm S2-Straight Pin 10.0mm R-Right Angle Pin T-SMT Pin

Material:
Housing: 30% Glass filled PPS UL94V-0
Contacts: Brass
Plating: Gold plated over 50u” nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Voltage Rating: 60V AC/DC
Insulator Resistance: 1000M Ohm min at 100V AC
Contact Resistance: 20m Ohm max
Operating Temperature: -40ºC~+105ºC
