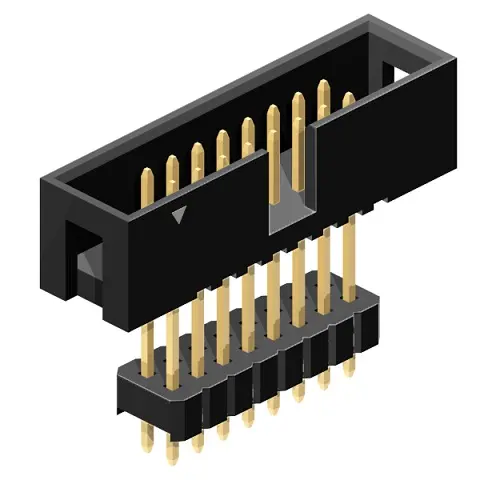

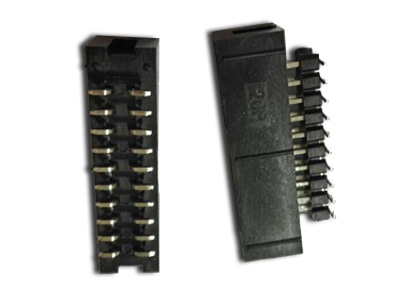

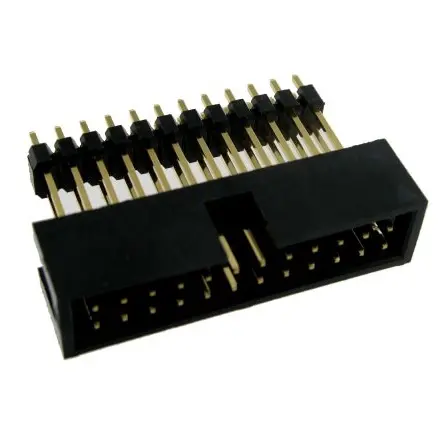

2.54mm Pitch Box Header Connector

Order Information
KLS1-202K-XX-S-B-PB-口
Type:202K or 202K1
XX-Total pin number  (No.of 6~64pin)
S-Straight Pin   T-SMT Pin
B-Black
Size: PB
Material_None=PA6T A=PBT   C=LCP

Material:
Housing: PBT UL94V-0 / PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u” over 50u” nickel
Electrical Characteristics:
Current Rating: 3 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:1000V AC/DC
Operating Temperature: -45ºC~+105ºC
