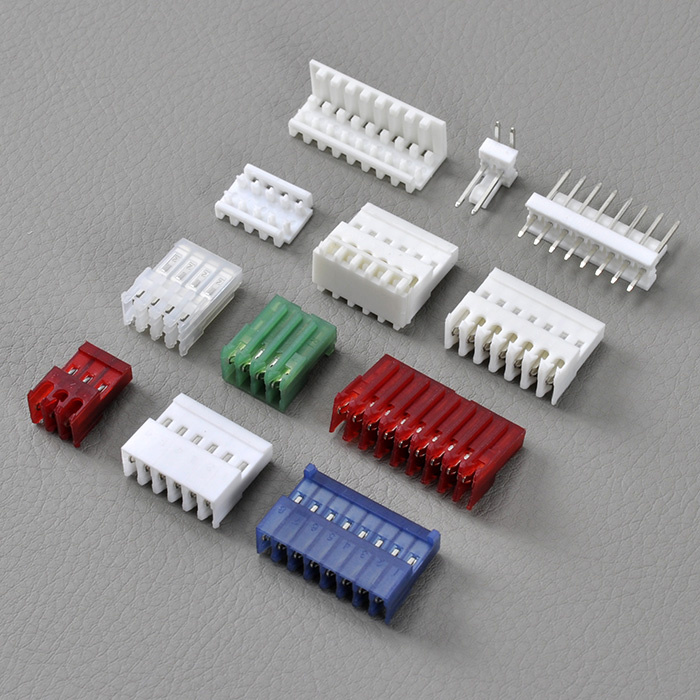

2.54mm AMP IDC Connector
Housing Order Information
KLS1-MT-2.54-XX-R
IDC Housing Type-MT,MR,MA,MB
2.54-2.54mm pitch
XX-Total pin number (No.of 2~24pins)
Color: R=Red=22AWG W=White=24AWG BL=Blue=26AWG G=Green=28AWG BK=Black 18~26AWG
Wafer Order Information
KLS1-MT-2.54-S1-XX-W
Straight Pin:S1,S2,S3 Right Angle Pin:R1,R2,R3
XX-Total pin number (No.of 2~24pins)
Color: : W=White BK=Black
Electrical Specification:
Rated Voltage: 250V AC.DC
Rated Current: 3A
Contact Resistance: 20mΩ max
Insulation Resistance: 1000MΩ min
Withstand voltage: 1500V AC/MIN
Temperature range for usage : -40ºC~+105ºC
Material:
Housing: PA66 UL94V-2
Contacts: Brass / Phosphor bronze
Plating: Tin 50u” over 100u” nickel
