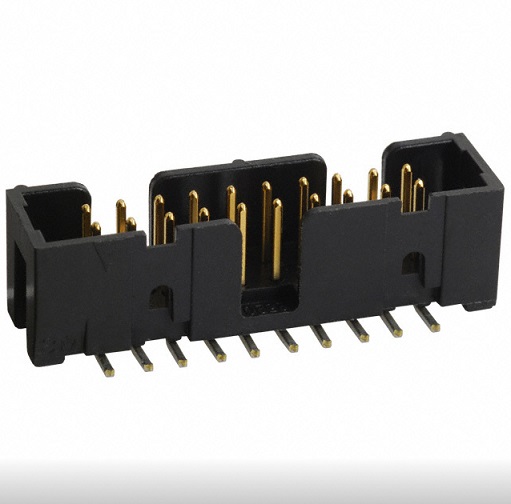

2.54mm 3M 2500 Type Box Header Connector

Order Information
KLS1-202I-XX-S-B-A
XX-No.of  10~64pin

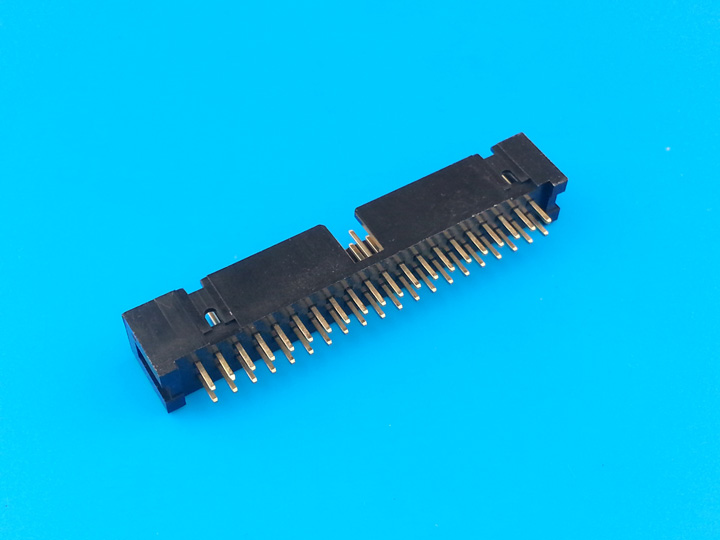

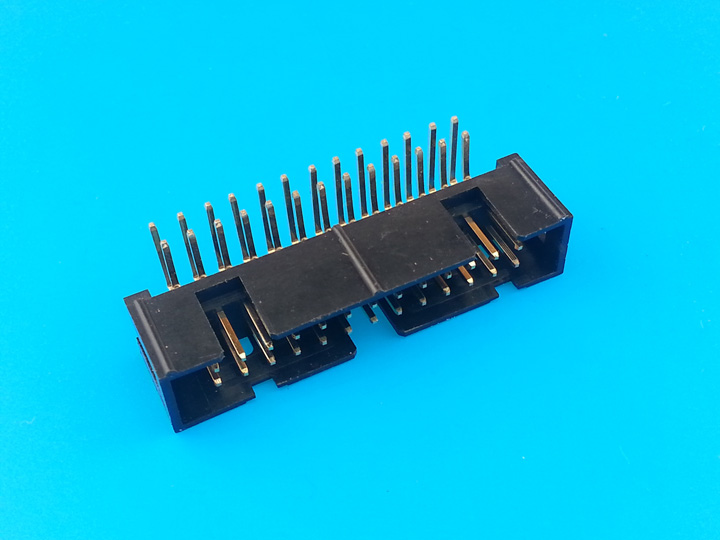

S-Straight pin  R-Right Angle Pin   T-SMT Pin
B-Black  G-Gray    L-Blue
Material_A=PBT  B=PA6T

Material:
Housing: PBT UL94V-0 / PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u” over 50u” nickel
Electrical Characteristics:
Current Rating: 3 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:1000V AC/DC
Operating Temperature: -45ºC~+105ºC

KLS1-202I.pdf
