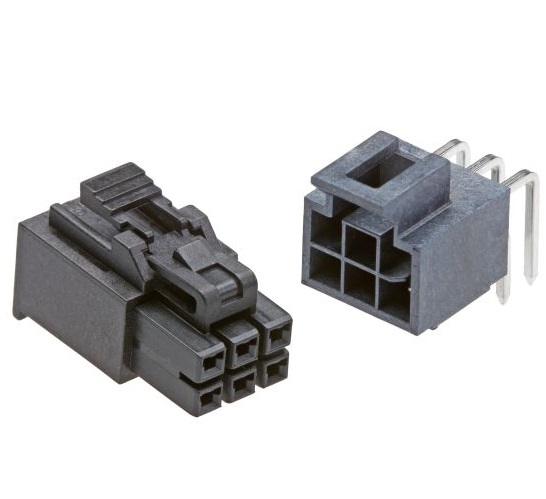

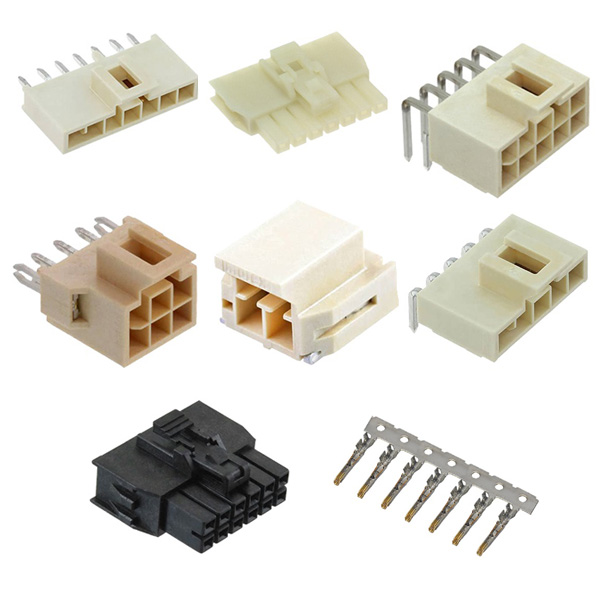

2.50mm Pitch Molex Nano-Fit 105307 105308 105310 105312 105313 105314 105430 105405 Wire To Board Connector
- Product Details
2.50mm Pitch Molex Nano-Fit 105307 105308 105310 105312 105313 105314 105430 105405 Wire To Board Connector
Order information:
KLS1-2.50D-1×02-H-B
Pitch:2.50mm
1-Single layer 2-Double layer
02-No.of 02~16 pins

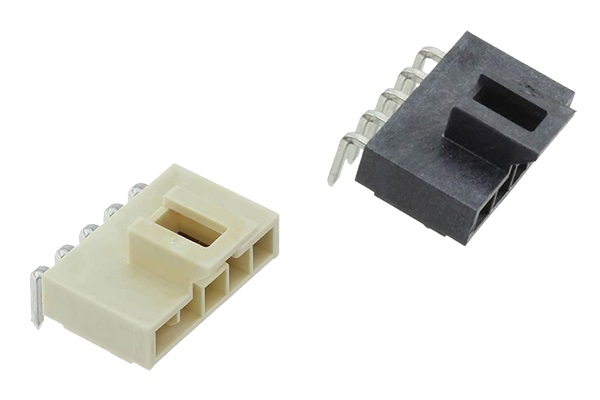

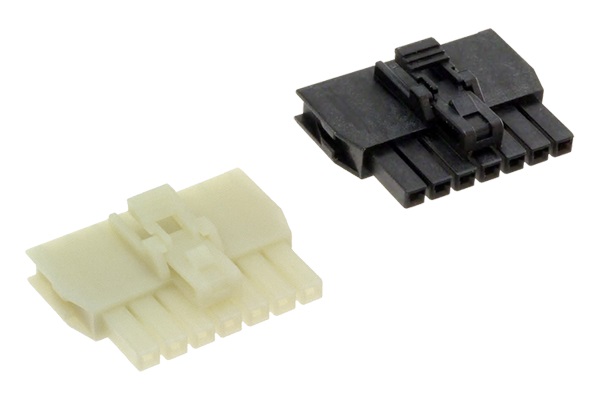

H-Housing T-Terminal S SA-Straight male pin R-Right angle male pin RM-Horizontal SMT Pin
Color: A-KEY A,Black B-KEY B,Natural
Specifications
◆Material: PA66/LCP UL94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3A,6.5A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1500V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range : AWG#20~#26
