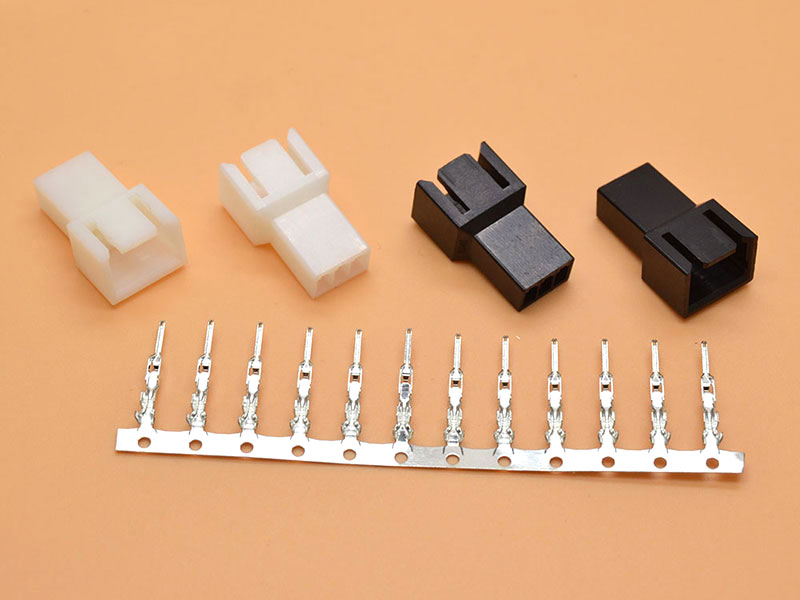

2.50mm Pitch Molex 5102 5240 Wire To Wire Connector
- Product Details
2.50mm Pitch Molex 5102 5240 Wire To Wire Connector
Order information:
KLS1-XM1-2.54-XX-FH
Pitch:2.50mm
XX-No.of 02~04 pins
MH-Male Housing FH-Female Housing MT-Male Terminal FT-Female Terminal S-Straight male pin R-Right angle male pin
Specifications
◆Material: PA66 UL 94V-2
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:800MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#22~#28
