2.50mm Pitch MOLEX 5051 5045 5046 Wire To Board Connector
- Product Details

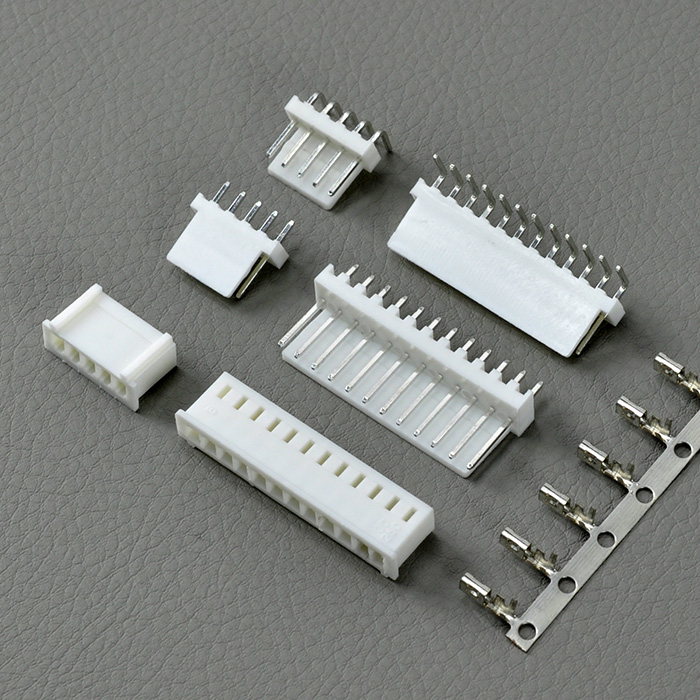

2.50mm Pitch MOLEX 5051 5045 5046 Wire To Board Connector
Order information:
KLS1-XA1-2.50-XX-H
Pitch:2.50mm
XX-No.of 02~20 pins
H-Housing T-Terminal S-Straight male pin R R1-Right angle male pin
Specifications
◆Material: PA66 UL 94V-2
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:800V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#22~#28
