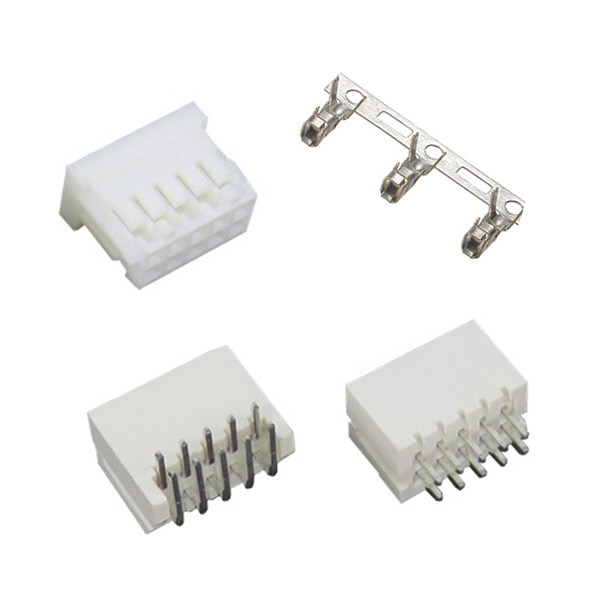

2.50mm Pitch JST XHD Double Type Wire To Board Connector
- Product Details
2.50mm Pitch JST XHD Double Type Wire To Board Connector
Order information:
KLS1-2.50C-2×02-H
Pitch:2.50mm
2-Double layer
02-No.of 02~20 pins

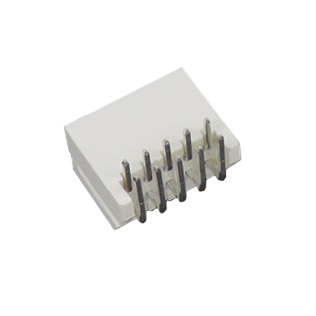

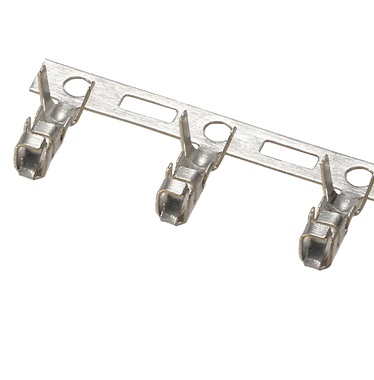

H-Housing T-Terminal S-Straight pin R-Right angle pin
Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range : AWG#22~#30
