2.50mm Pitch JST XHB With Lock Type Wire To Board Connector

Model: KLS1-2.50L
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

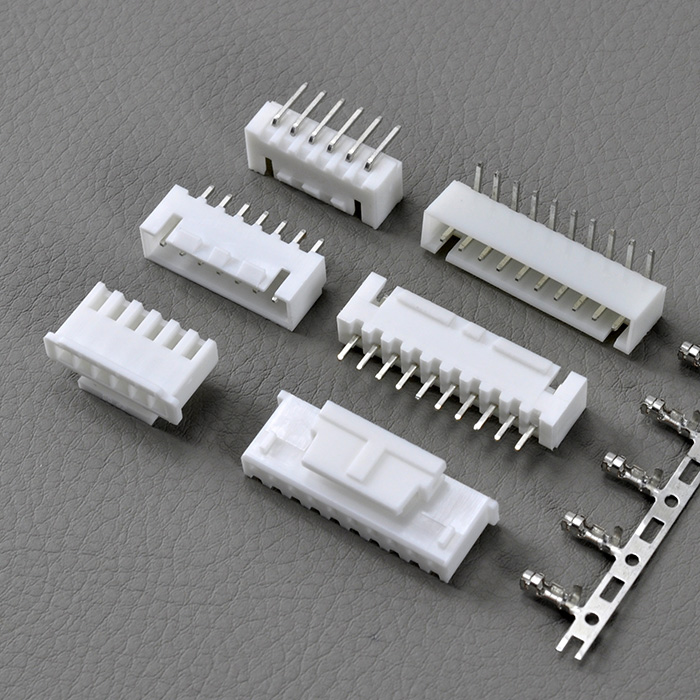

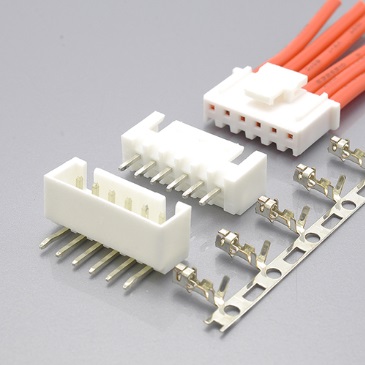

2.50mm Pitch JST XHB With Lock Type Wire To Board Connector
Order information:
KLS1-2.50L-XX-H
Pitch:2.50mm
XX-No.of 02~16 pins

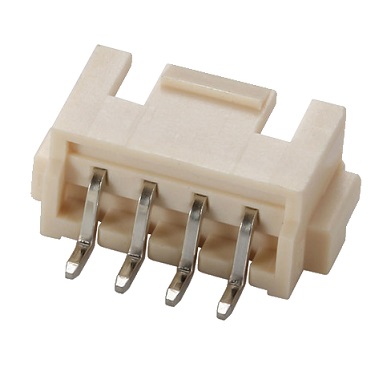

H FH-Housing T MT-Terminal S-Straight male pin R-Right angle male pin RM-SMT male pin

Specifications
◆Material: PA66 UL 94V-2
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#22~#28
