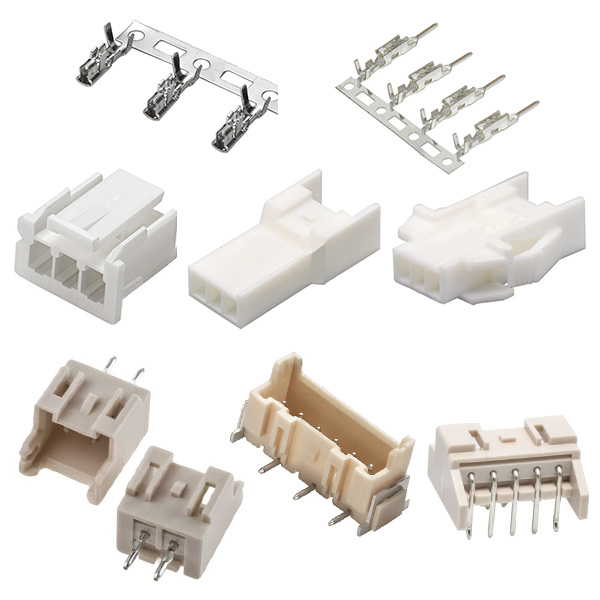

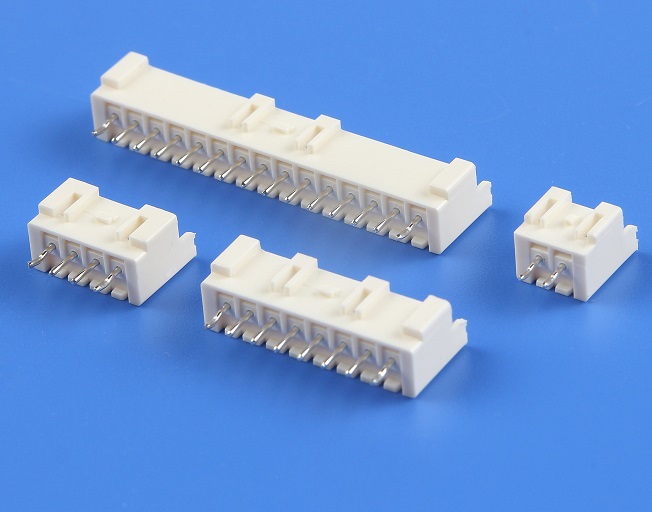

2.50mm Pitch JST XA Type Wire To Board Connector
- Product Details
2.50mm Pitch JST XA Type Wire To Board Connector
Order information:
KLS1-2.50A-XX-H
Pitch:2.50mm
XX-No.of 02~16 pins

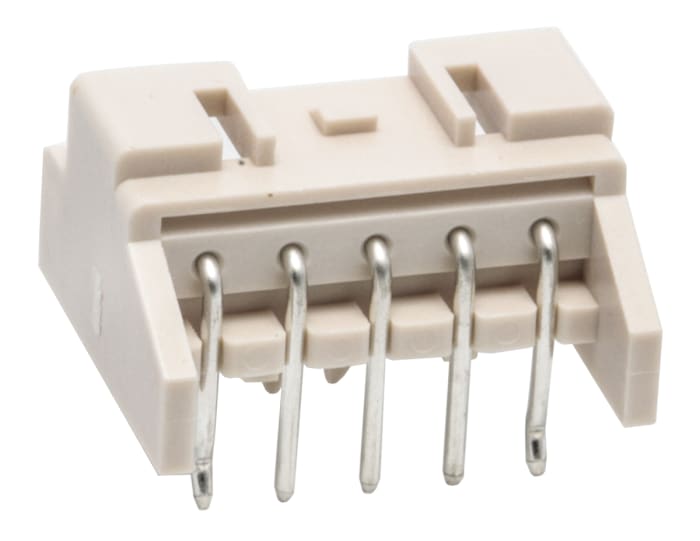

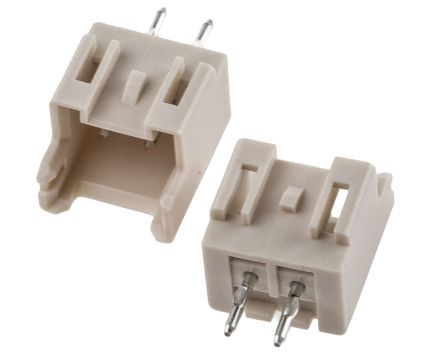

FH H-Housing FT MT-Terminal S S2-Straight pin R R2-Right angle pin RM VM-SMT pin
Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range : AWG#20~#28
