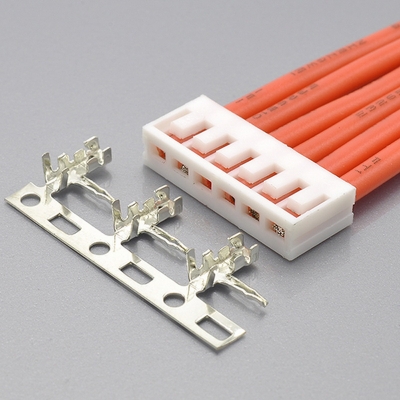

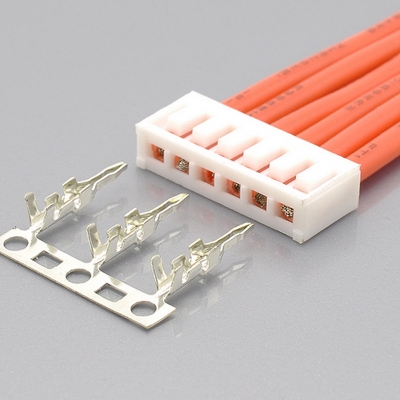

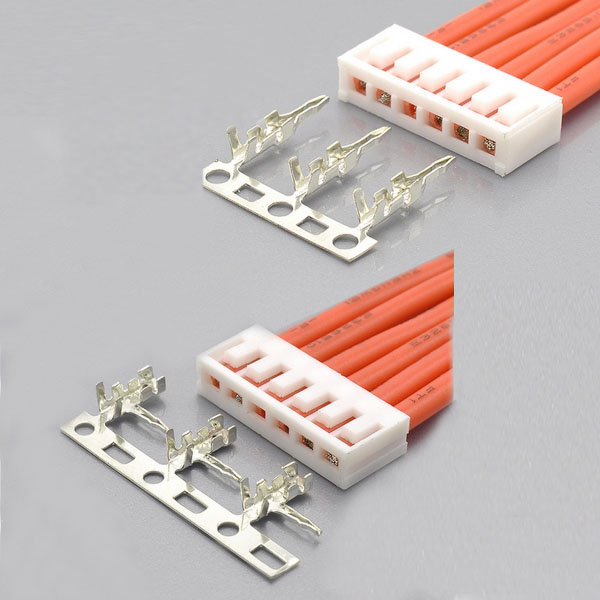

2.50mm Pitch JST SCN2.5 Wire Connector
- Product Details
2.50mm Pitch JST SCN2.5 Wire Connector
Order information:
KLS1-XL6-2.50-XX-H1
Pitch:2.50mm
XX-No.of 02~16 pins
H1 H2-Housing T1 T2-Terminal
Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:800MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range : AWG#22~#24
