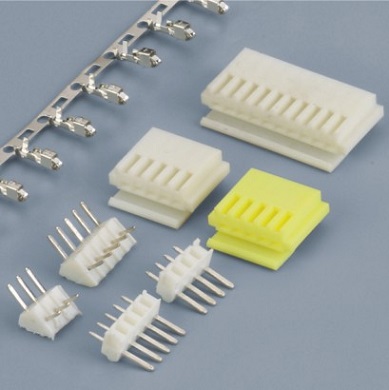

2.50mm Pitch JST NH Type Wire To Board Connector

Model: KLS1-XL7-2.50
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

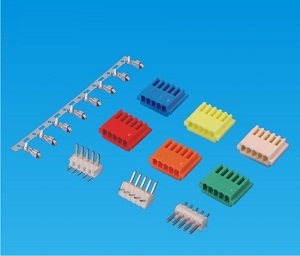

2.50mm Pitch JST NH Type Wire To Board Connector
Order information:
KLS1-XL7-2.50-XX-H
Pitch:2.50mm
XX-No.of 02~15 pins
H-Housing T-Terminal S-Straight male pin R-Right angle male pin

Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:1000V AC minute
◆Contact resistance:15mΩ Max.
◆Wire range : AWG#22~#28

PDF

KLS1-XL7-2.50.pdf
