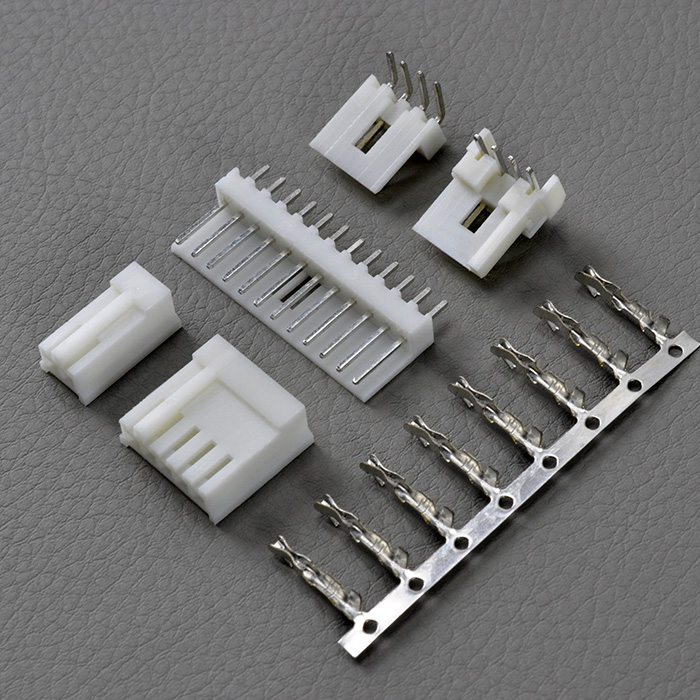

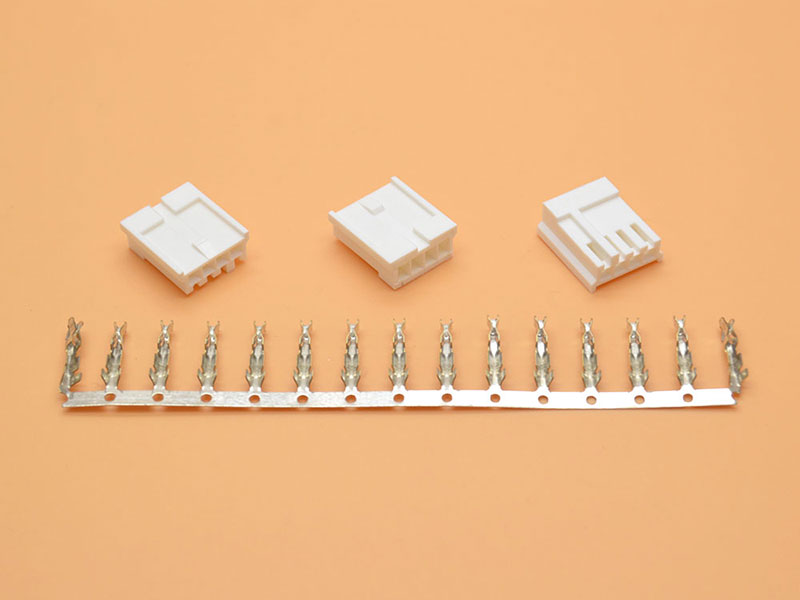

2.50mm Pitch AMP 171822 171825 Type Wire To Board Connector
Order information:
KLS1-XL2-2.50-XX-H
Pitch:2.50mm
XX-No.of 02~15 pins
H-Housing T-Terminal S-Straight male pin R-Right angle male pin R1-Right angle male pin
Specifications
◆Material: PA66 UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:250V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:500MΩ Min.
◆Withstanding voltage:800V AC minute
◆Contact resistance:10mΩ Max.
◆Wire range : AWG#20~#26
