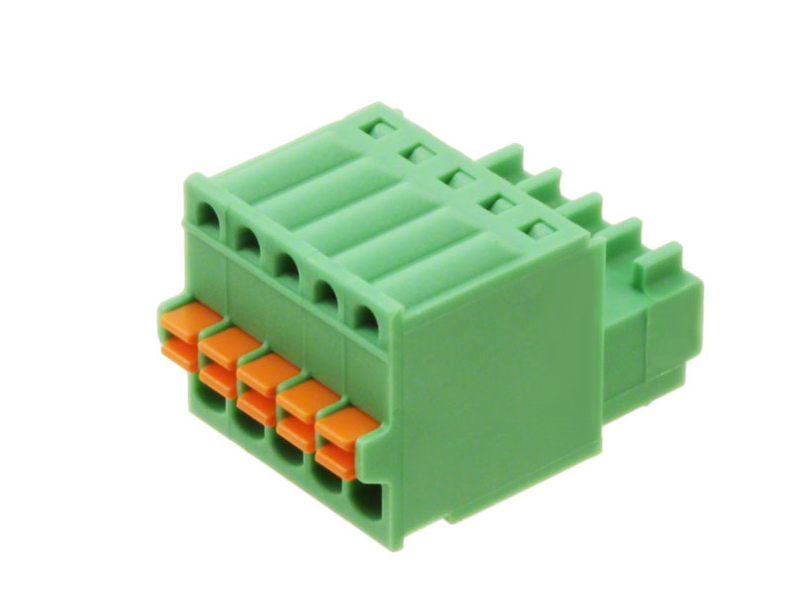

2.50mm Male Pluggable terminal block

Electrical:
Rated voltage:150V
Rated current: 5A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/1Min
Wire range: 26-20AWG 0.5mm²

Material:
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0

Mechanical:
Temp. Range: -40ºC~+105ºC

KLS2-EDGKD-2.50.pdf
