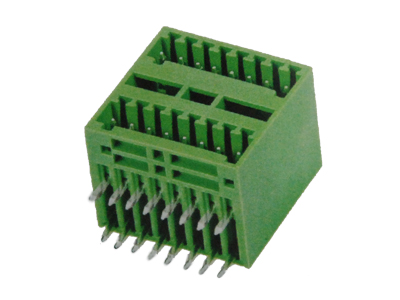

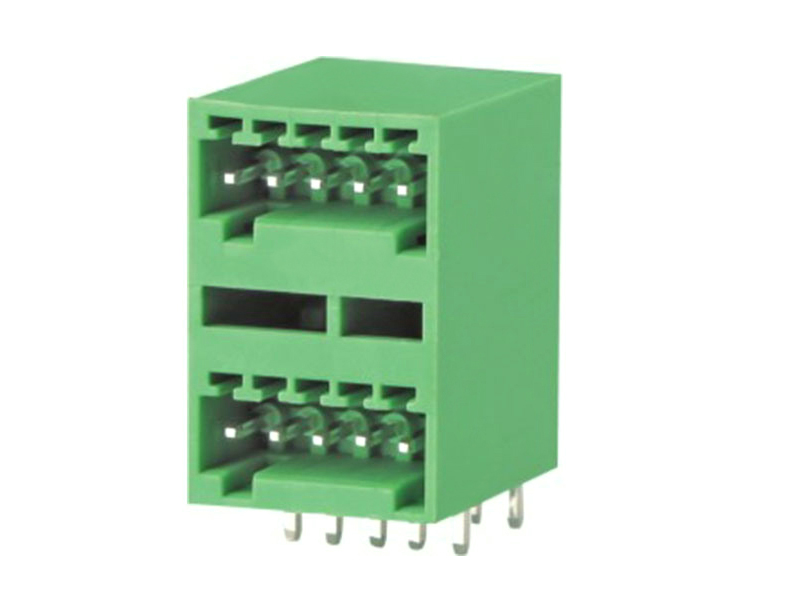

2.50mm & 2.54mm Female Pluggable terminal block Right Angle Pin

  • Model: KLS2-EDAR-2.50&2.54
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details
  • PDF

2.50mm & 2.54mm Female Pluggable terminal block Right Angle Pin

Electrical :
Rated voltage: 125V
Rated current:4A
Contact resistance:20mΩ
Insulator Resistance:5000MΩ/1000V
Withstanding Voltage: AC1250V/1Min
Temp. Range:-40ºC~+105ºC

Material:
Housing: PA66, UL94V-0
Pin header:Brass,Tin Plated

PDF

KLS2-EDAR-2.50.pdf
