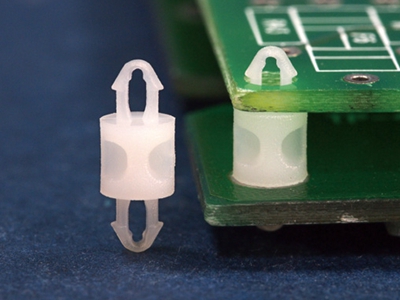

2.5/2.5mm Spacer Support

  • Model: KLS8-0237M
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

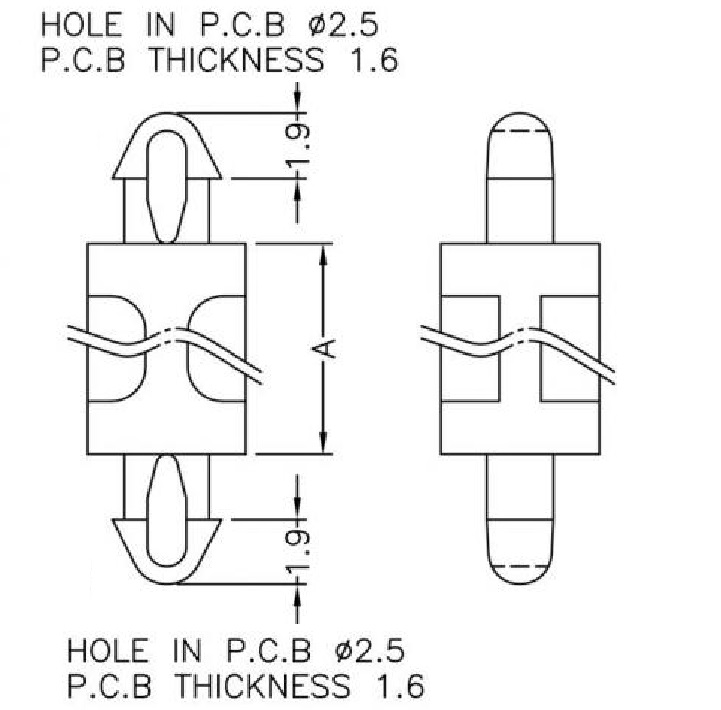

P/N A UPPER  CHASSIS  Color Packing
PCB Hole PCB THICKNESS PCB Hole PCB THICKNESS
　 mm mm mm mm mm 　 pcs
L-KLS8-0237M-LD-02 2.0 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-03 3.0 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-04 4.0 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-4.5 4.5 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-05 5.0 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-06 6.0 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-6.5 6.5 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-7.5 7.5 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-08 8.0 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-9.5 9.5 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-10A 10.0 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-10 10.5 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
L-KLS8-0237M-LD-12.7 12.7 2.5 1.2~1.7 2.5 1.2~1.7 Natural 2000
