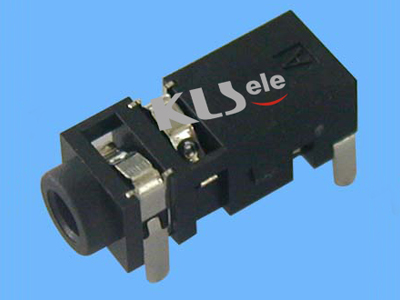

2.1mm Stereo Jack For PCB Mount
- Product Details
2.1mm Stereo Jack For PCB Mount
Electrical Specification:
Rating: 0.5A 30V DC
Contact Resistance: 30mΩ max
Insulation Resistance: 100mΩ min at 500V DC
Dielectric Strength (V): AC 500V(50Hz)for 1 min
Life: 5000 Cycles
Temperature: -30ºC~+70ºC
Insertion and Extraction Force: 3-20N
Material:
Housing Material:PA66
Center Pin Material:
Terminal 1 : Copper Alloy
Terminal 2 : Copper Alloy
Terminal 3 : Copper Alloy
Terminal 10 : Brass
