Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

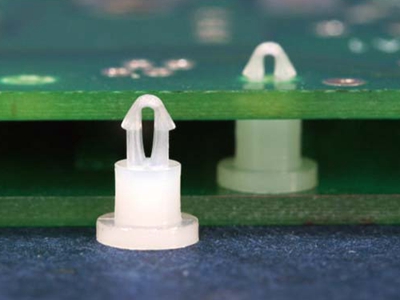

Application: the fixed PC board on the boards, free tools

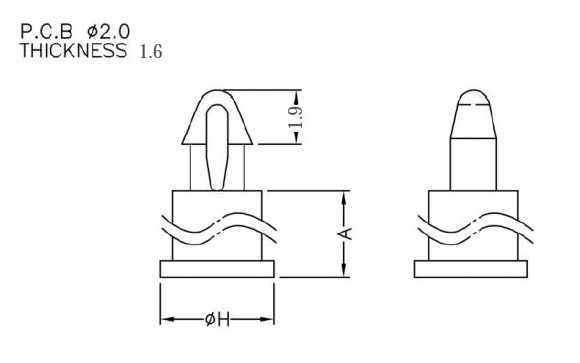

P/N | A | UPPER | Color | Packing | |||
PCB Hole | PCB THICKNESS | H | |||||
mm | mm | mm | mm | pcs | |||
L-KLS8-0271-BSE-02 | 2.0 | 2.0 | 1.2~1.7 | 4.8 | Natural | 2000 | |
L-KLS8-0271-BSE-2.5 | 2.5 | 2.0 | 1.2~1.7 | 4.8 | Natural | 2000 | |
L-KLS8-0271-BSE-03 | 3.0 | 2.0 | 1.2~1.7 | 4.8 | Natural | 2000 | |
L-KLS8-0271-BSE-04 | 4.0 | 2.0 | 1.2~1.7 | 4.8 | Natural | 2000 | |
L-KLS8-0271-BSE-05 | 5.0 | 2.0 | 1.2~1.7 | 4.8 | Natural | 2000 | |
L-KLS8-0271-BSE-06 | 6.0 | 2.0 | 1.2~1.7 | 5.0 | Natural | 2000 | |
L-KLS8-0271-BSE-08 | 8.0 | 2.0 | 1.2~1.7 | 5.0 | Natural | 2000 | |
L-KLS8-0271-BSE-09 | 9.0 | 2.0 | 1.2~1.7 | 5.0 | Natural | 2000 |
