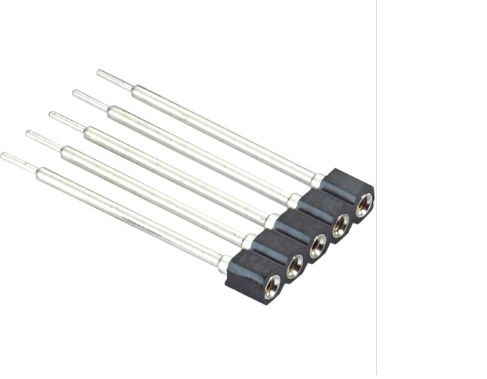

2.0mm SIP Socket Connector,Length 9.4mm,11.2mm

  • Model: KLS1-209BA
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.0mm Pitch  SIP Socket Connector Length 9.4mm,11.2mm

Order Information
KLS1-209BA-1-XX-S-口
1-Single layer   2-Double layer
XX-Total pin number  (No.of 1~80pin)
S-Straight Pin 11.2mm   S2=Straight Pin 9.4mm
Y-Imported Beryllium copper   NONE-Domestic Phosphor Bronze

Material:
Housing: 30% Glass filled PPS UL94V-0
Contacts:Beryllium copper or Phosphor Bronze
Plating: Gold 1.25u” over 50u” nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min. at DC 100V
Contact Resistance: 10m Ohm max.
Operating Temperature: -45ºC~+105ºC
