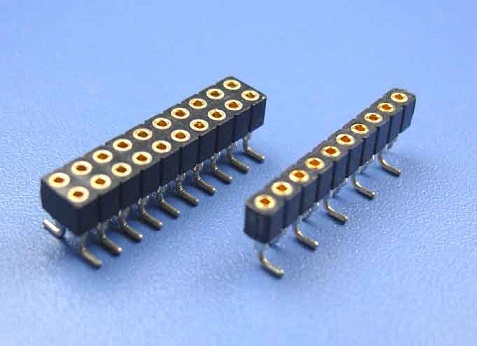

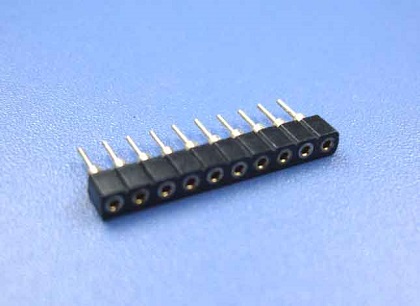

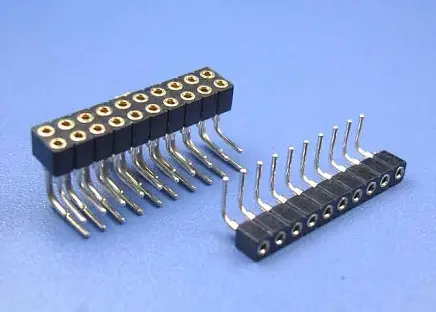

2.0mm Pitch SIP Socket Connector

Order Information
KLS1-209B-1-XX-S-口
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~80pins)
S-Straight Pin R-Right Angle Pin T RM-SMT Pin
Y-Imported Beryllium copper NONE-Domestic Phosphor Bronze

Material:
Housing: 30% Glass filled PPS UL94V-0
Contacts:Beryllium copper or Phosphor Bronze
Plating: Gold 1.25u” over 50u” nickel
Electrical Characteristics:
Current Rating: 3.0 AMP
Insulator Resistance: 1000M Ohm min. at DC 100V
Contact Resistance: 10m Ohm max.
Operating Temperature: -45ºC~+105ºC

KLS1-209B.pdf
