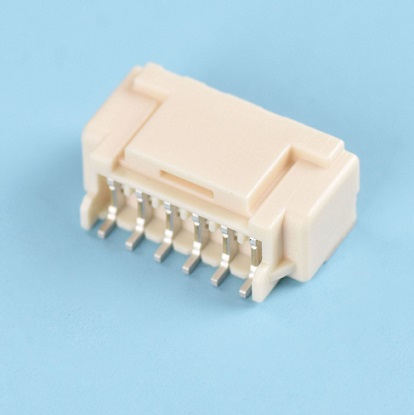

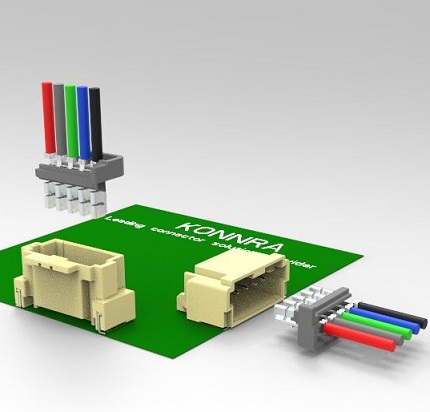

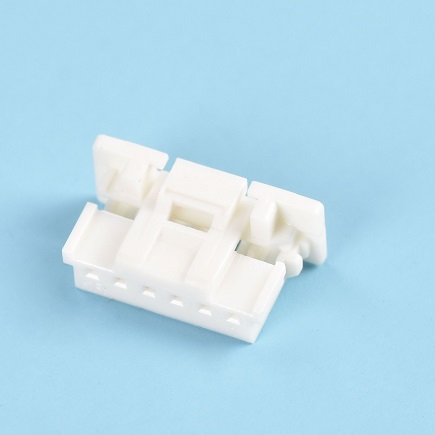

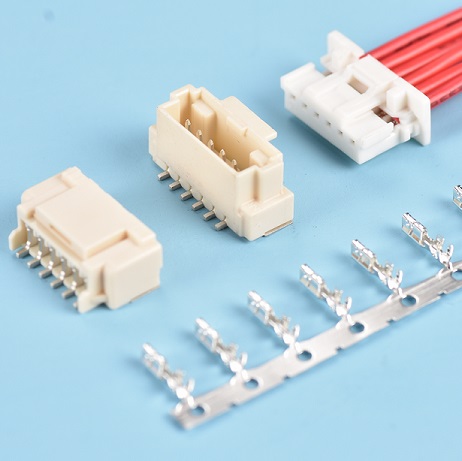

2.0mm Pitch Molex 502351 505151 502352 560020 Wire To Board Connector

Order information:
KLS1-ML-2.00-XX-H
Pitch:2.00mm
XX-No.of 02~15 pins
H-Housing   T-Terminal  VM-Vertical SMT Pin  RM-Horizontal SMT Pin
Specifications
◆Material: PBT/PA9T UL 94V-0
◆Contact : Brass
◆Finish : Plated Tin over Nickel
◆Current rating:3.0A AC,DC
◆Voltage rating:125V AC,DC
◆Temperature range:-45℃~+105℃
◆Insulationresistance:1000MΩ Min.
◆Withstanding voltage:500V AC minute
◆Contact resistance:20mΩ Max.
◆Wire range  : AWG#24~#30

KLS1-ML-2.00.pdf
