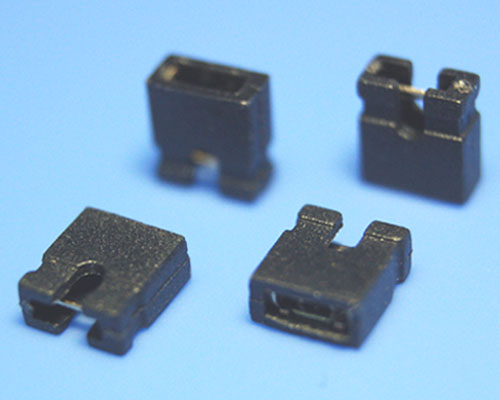

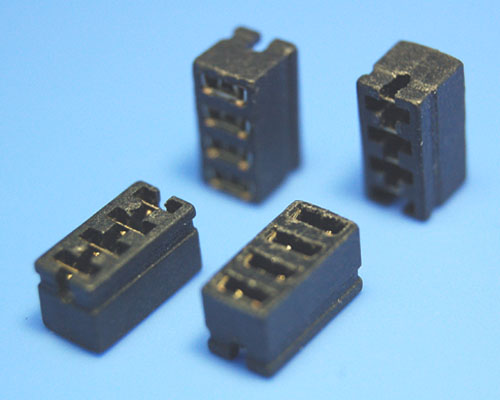

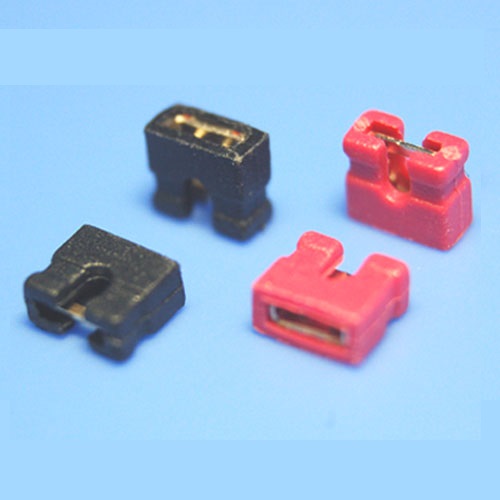

2.0mm Pitch Mini Jumper Connector

ORDER INFORMATION:
KLS1- 203B – C – B – 5.0
(1) (2) (3) (4)
(1)Pitch: 203B-pitch 2.0mm
(2)Housing Type O-Open C-Close
(3)Color: B- Black R-Red L-Blue G-Green

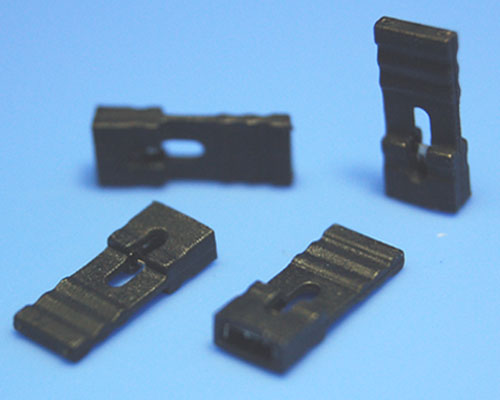

(4)Height- Open Type:3.5mm/4.5mm/9.5mm Close Type:5.0mm

Material:
Housing: 30% Glass filled PBT UL94V-0
Contacts: Phosphor Bronze
Plating: Selective gold plated 3u” over 50u” nickel
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 1000M Ohm¸min. at DC 500V
Contact Resistance: 20m Ohm¸ max. at DC 100mA
Operating Temperature: -55ºC~+105ºC
