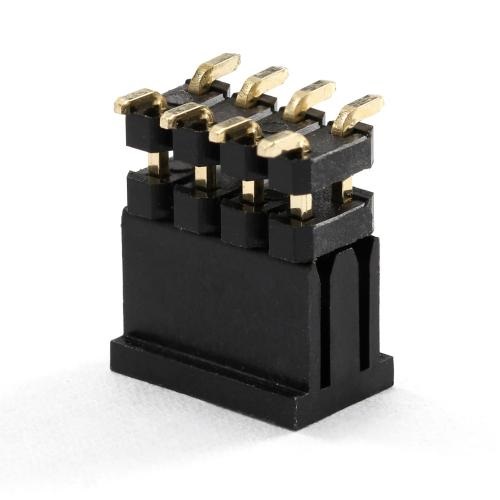

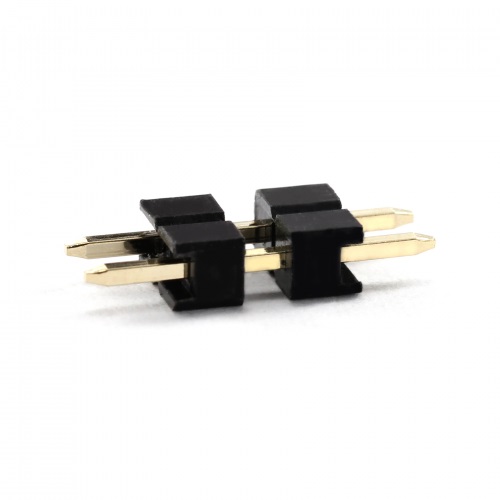

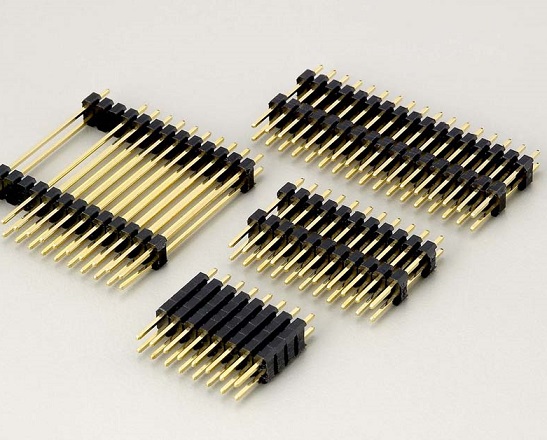

2.0mm Pitch Pin Header Connector With Dual Insulator Plastic Type

Order Information
KLS1-218B-2.00-1-XX-S-L1*L2*L3 -G0
Plastics Height:2.00mm、1.50mm
1-Single layer 2-Double layer
XX-Total pin number (No.of 2~80pin)
S-Straight Pin R-Right Angle Pin T-SMT Pin
Size: L1*L2*L3
Plating: G0=Gold Flash G1=1u” Gold G10=10u” Gold G15=15u” Gold G30=30u” Gold
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating: Gold plated: 0.8u” over 50u” nickel
Electrical Characteristics:
Current Rating: 1.5 AMP
Insulator Resistance: 1000M Ohm min.
Contact Resistance: 20m Ohm max.
Withstanding Voltage:AC 500V/Minute
Operating Temperature: -45ºC~+105ºC
