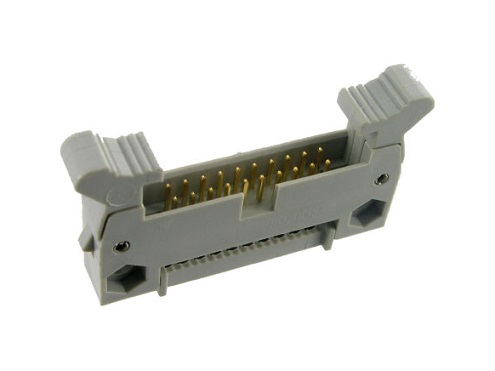

2.0mm Pitch IDC Ejector header connectors

  • Model: KLS1-201BY
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.0mm Pitch IDC Ejector header connectors

Order Information:
KLS1-201BY-XX-G-E-L
XX-No.of 06~64pin
B-Black   G-Gray
E-With ears   N-Without ears
L-Long latch  S-Short latch

Material:
Housing: PBT UL94V-0
Contacts: Brass
Plating: Au or Sn Over Ni

Electrical Characteristics:
Current Rating: 1.0 AMP
Withsstand Voltage:500V AC/Minute
Insulator Resistance: 1000M Ohm min
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
