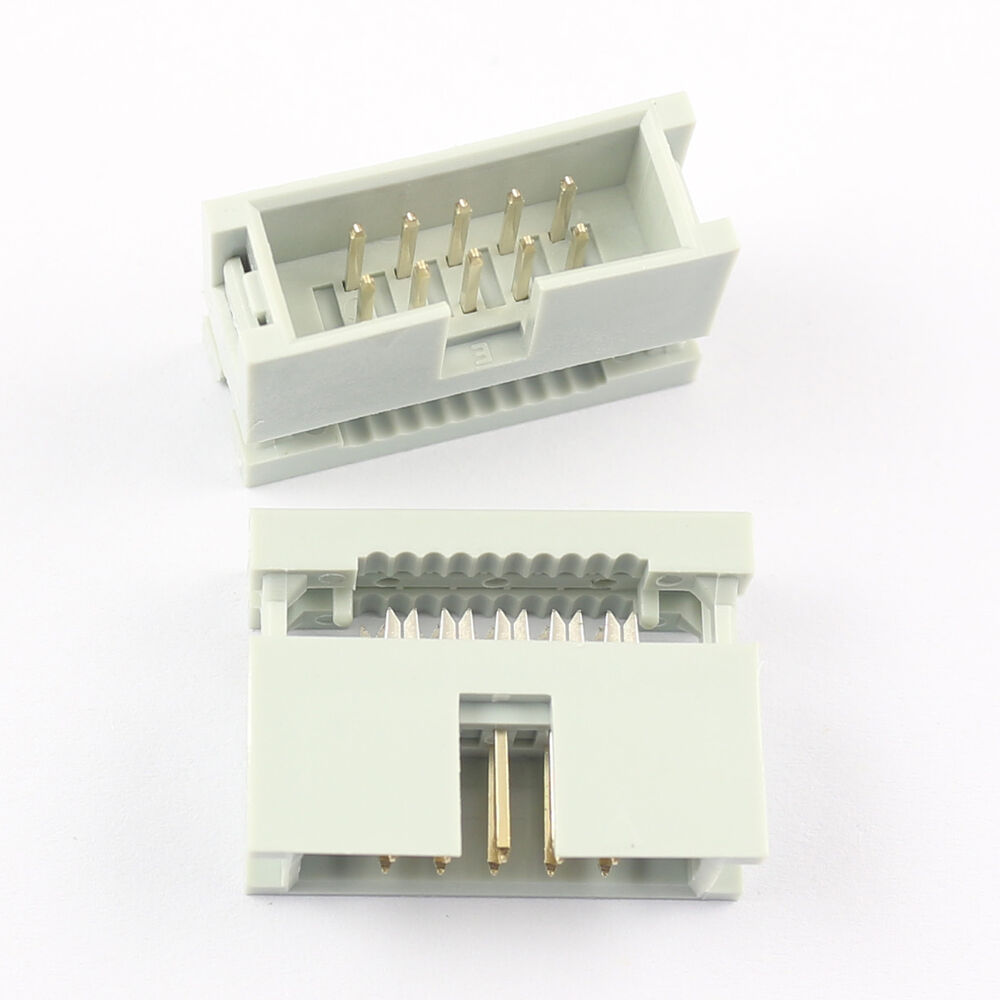

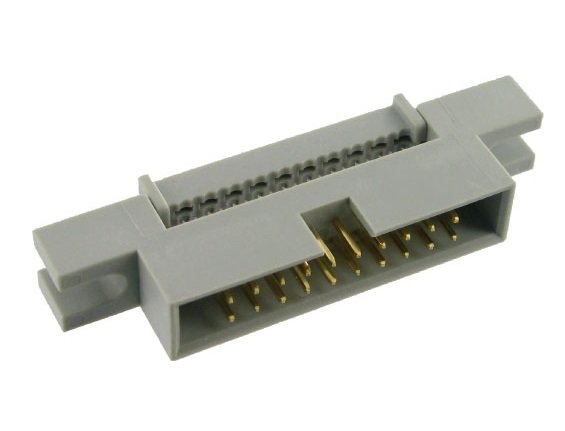

2.0mm Pitch IDC Ejector header connectors

Order Information:
KLS1-201BZ-XX-G-E
XX-No.of 06~68pin
B-Black   G-Gray
E-With ears   N-Without ears

Material:
Housing: PBT UL94V-0
Contacts: Brass
Plating: Au or Sn Over Ni

Electrical Characteristics:
Current Rating: 1.0 AMP
Withstand Voltage:500V AC/Minute
Insulator Resistance: 1000M Ohm min
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC

KLS1-201BZ.pdf
