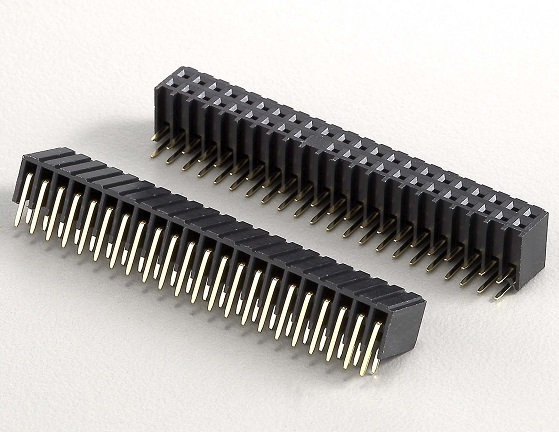

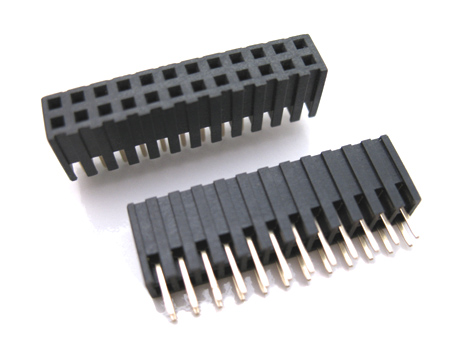

2.0mm Pitch Female Header Connector Height  7.2mm
Order Information
KLS1-208B-7.2-2-XX-S-B
Height: 7.2mm
2-Double layer
XX-Total pin number  (No.of 2~80pin)
S-Straight Pin      R-Right Angle Pin
Material_A=PBT  B=PA6T  C=LCP

Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC

KLS1-208B-7.2.pdf
