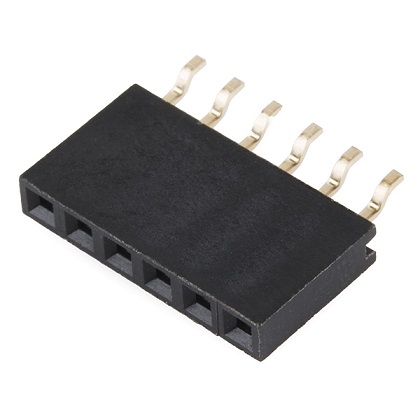

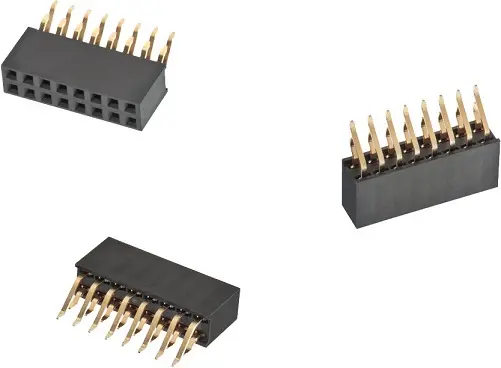

2.0mm Pitch Female Header Connector Height 6.35mm SMD

  • Model: KLS1-208BG-6.35
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.0mm Pitch Female Header Connector Height 6.35mm

Order Information
KLS1-208BG-6.35-1-XX-TR-L1xL2-B
Height: 6.35mm
1-Single layer   2-Double layer
XX-Total pin number  (No.of 2~80pin)
TR-SMT Pin
Size:L1xL2
Material_A=PBT  B=PA6T  C=LCP

Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
