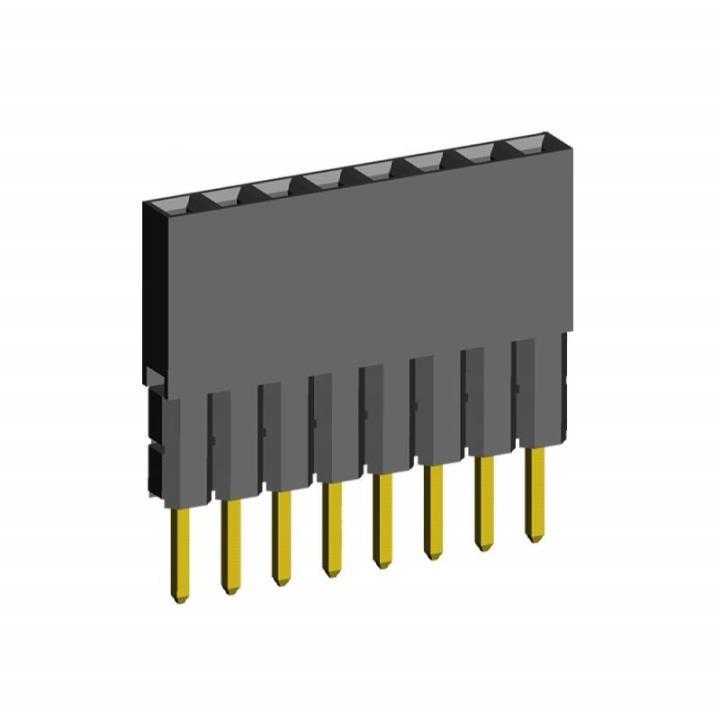

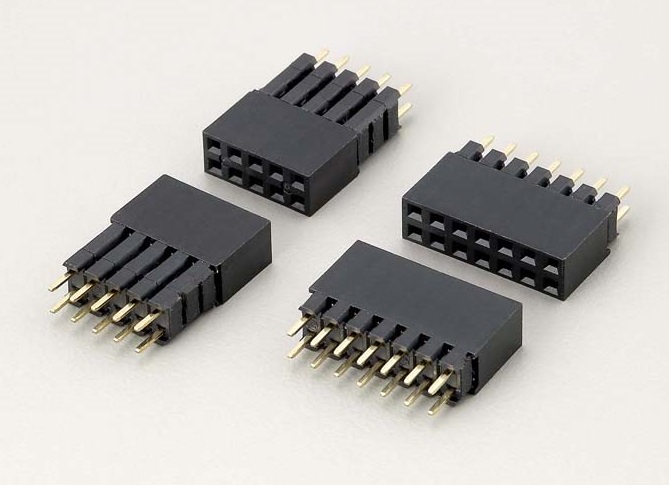

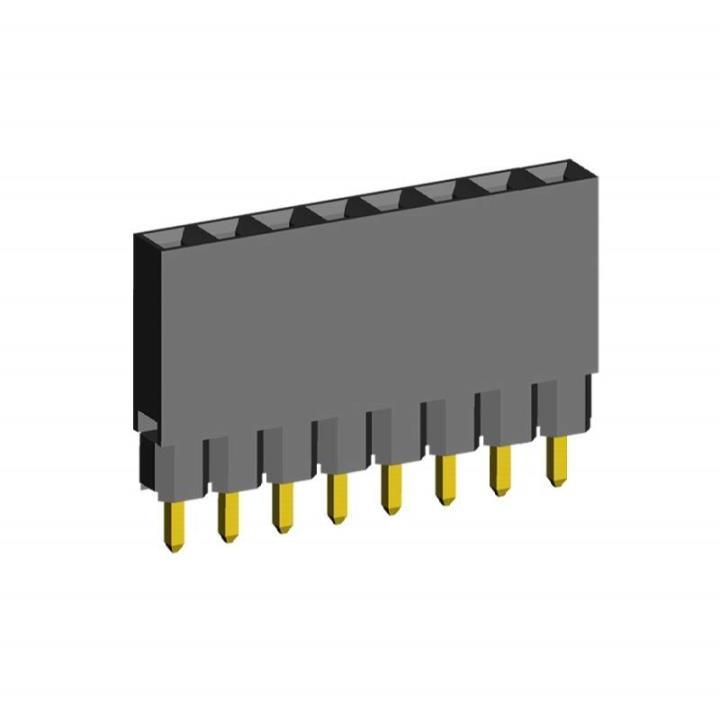

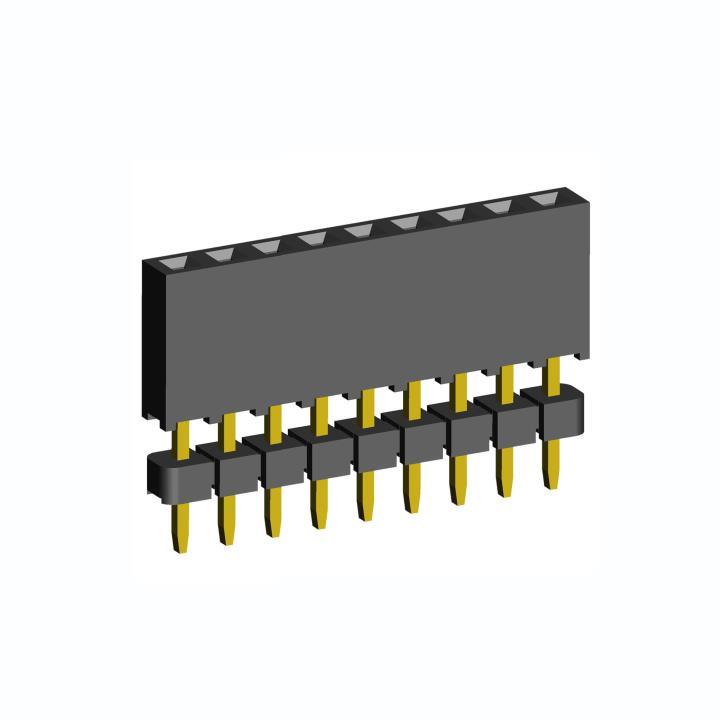

2.0mm Pitch Female Header Connector Height 6.35mm

Order Information
KLS1-208BX-6.35-1-XX-S-L1xL2-B
Height: 6.35mm
1-Single layer 2-Double layer 3-Three layer 4-Four layer
XX-Total pin number (No.of 1~160pin)
S-Straight Pin T-SMT Pin
Material:A=PBT B=PA6T C=LCP

Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC

KLS1-208BX-6.35.pdf
