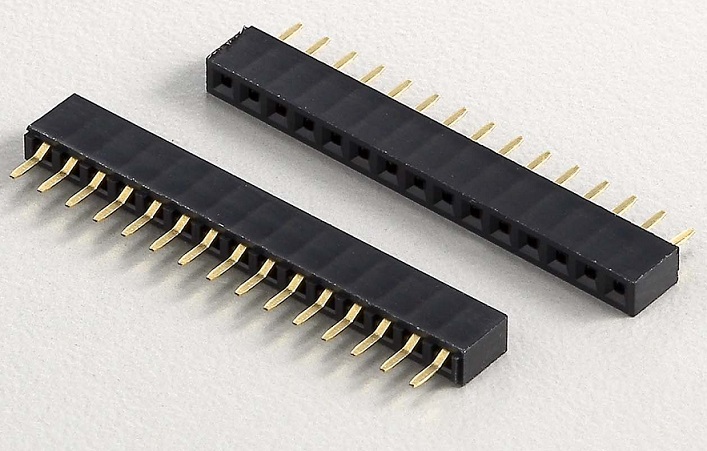

2.0mm Pitch Female Header Connector Height  4.3mm
Order Information
KLS1-208B-4.3-1-XX-S-B
Height: 4.3mm
1-Single layer   2-Double layer
XX-Total pin number  (No.of 2~80pin)
S-Straight Pin   R-Right Angle Pin   T-SMT Pin
Material_A=PBT  B=PA6T  C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC

KLS1-208B-4.3.pdf
