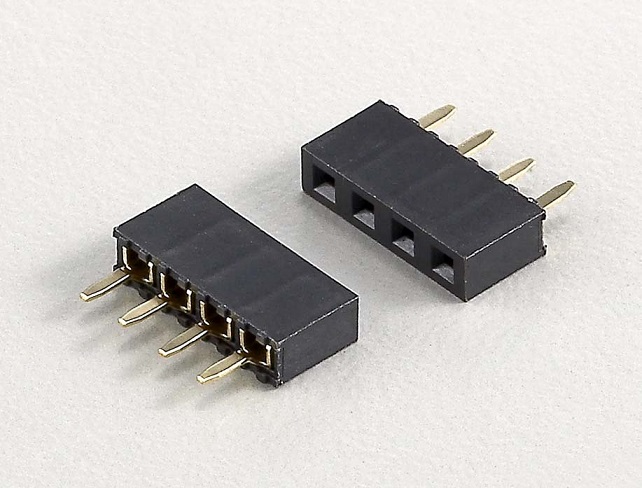

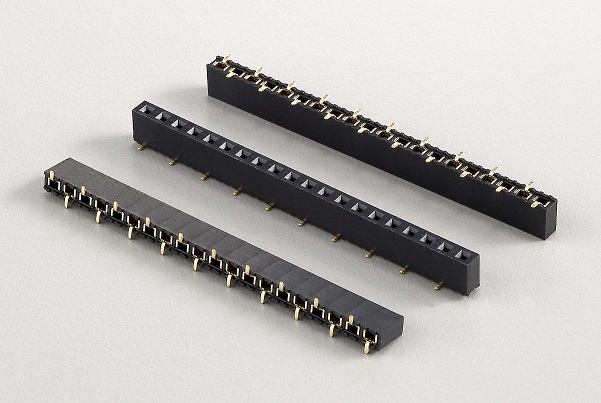

2.0mm Pitch Female Header Connector Height 2.2mm

  • Model: KLS1-208B-2.2
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.0mm Pitch Female Header Connector Height  2.2mm
Order Information
KLS1-208B-2.2-1-XX-S-B
Height: 2.2mm

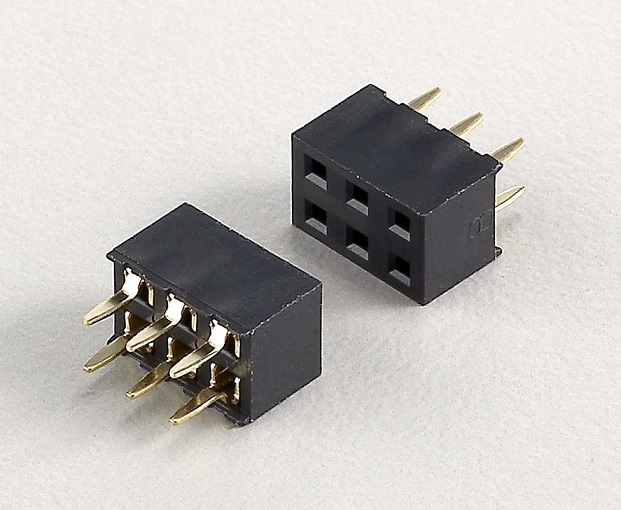

1-Single layer   2-Double layer
XX-Total pin number  (No.of 2~80pin)
S-Straight Pin    T-SMT Pin
Material_A=PBT  B=PA6T  C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC
