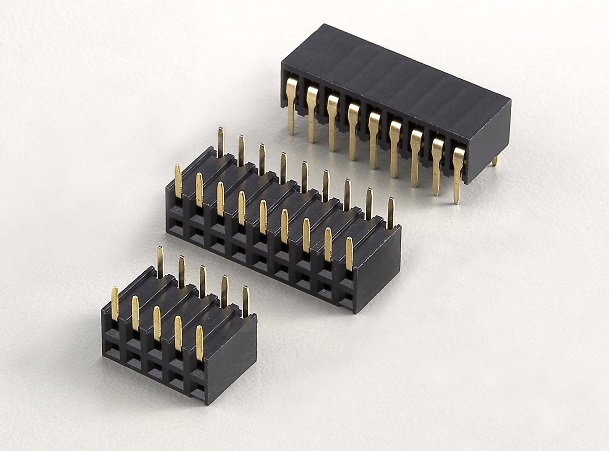

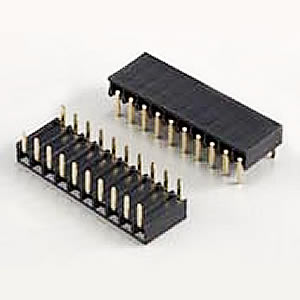

2.0mm Pitch Female Header Connector Height 2.0mm & 4.9mm Side Entry
Order Information
KLS1-208BP-2.0-1-XX-S-B
Height:2.0mm 4.9mm
1-Single layer   2-Double layer
XX-Total pin number  (No.of 1~80pin)
R-Right Angle Pin   T-SMT Pin
Material_A=PBT  B=PA6T  C=LCP

Material:
Housing: PA6T UL94V-0
Contacts: Brass or Phosphor Bronze
Plating: Au or Sn over 50u” Ni

Electrical Characteristics:
Current Rating: 1.5 AMP
Withstanding Voltage: 500V AC/DC
Insulator Resistance: 1000MΩ Min
Contact Resistance: 20mΩ Max
Operating Temperature: -40ºC~+105ºC

KLS1-208BP-2.0&KLS1-208BP-4.9.pdf
