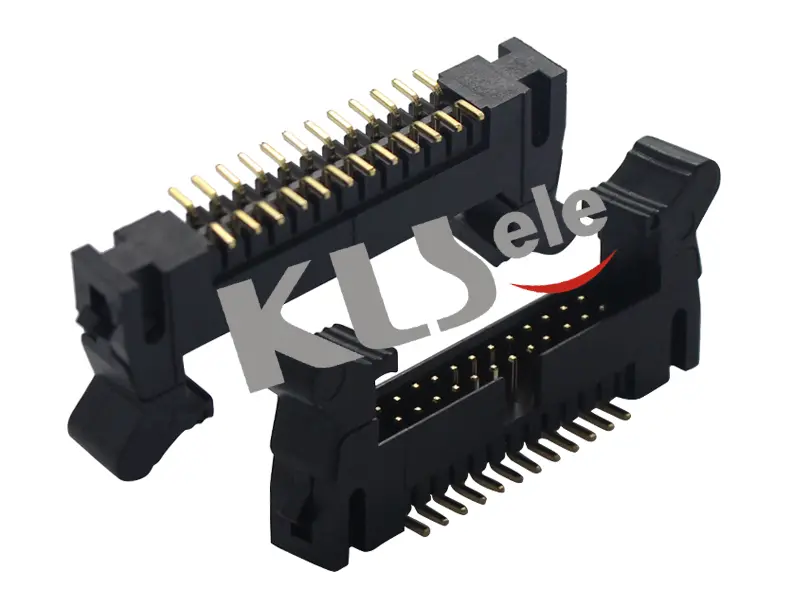

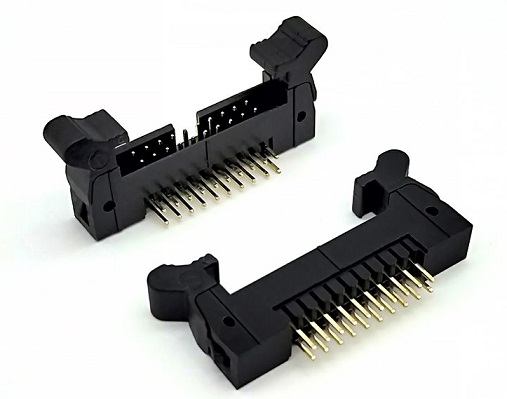

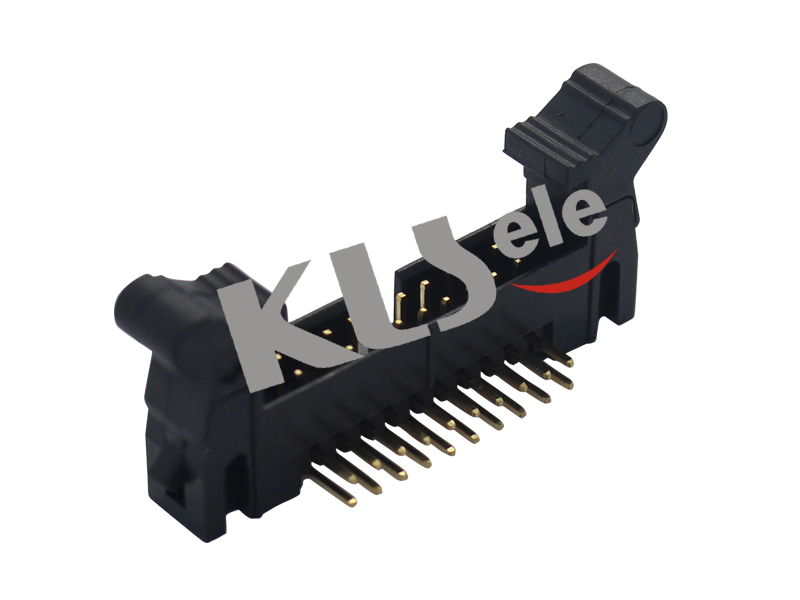

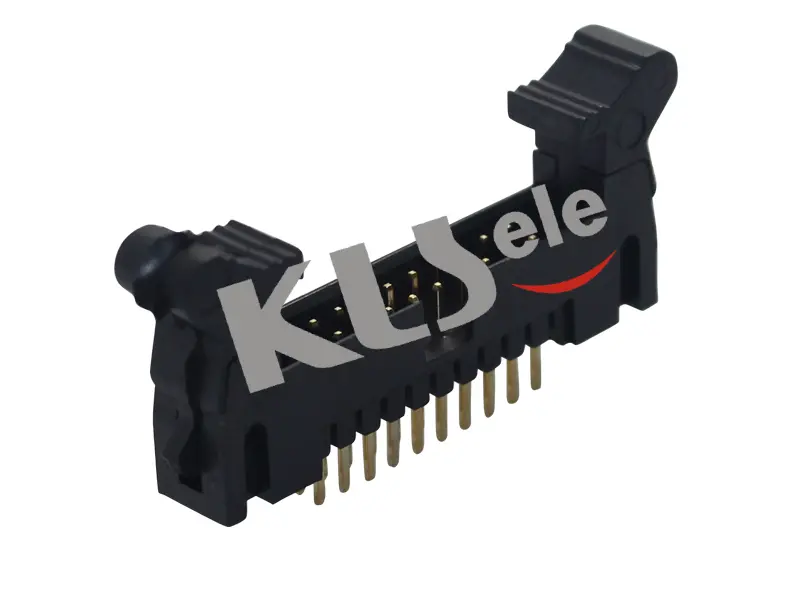

2.0mm Pitch Ejector header connectors

  • Model: KLS1-201B & KLS1-201B2
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.0mm Pitch Box Header Connector With Latch

Order Information:
KLS1-201B-XX-S-B-口
Type: 201B or 201B2
XX-No.of 06~64 pin
S-Straight pin  R-Right Angle Pin  T-SMT Pin
Color: B=Black
Material_NONE=PA6T  C=LCP  D=PA9T

Material:
Housing: PA6T or LCP UL94V-0, Black
Contacts: Brass
Plating:Gold 1u” over 50u” nickel
Electrical Characteristics:
Current Rating: 1.5 AMP
Insulator Resistance: 800M Ohm min.
Withstand Voltage: 500V AC/DC
Contact Resistance: 20m Ohm max.
Operating Temperature: -45ºC~+105ºC
