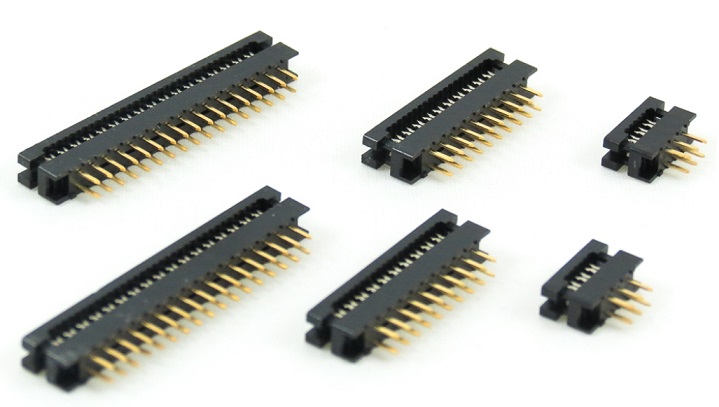

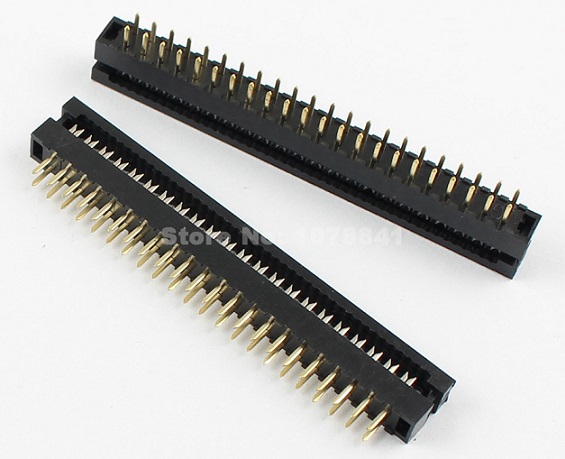

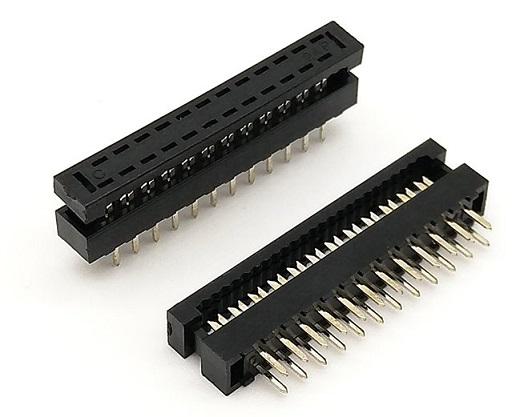

2.0mm Pitch Dip Plug IDC Connector

  • Model: KLS1-205B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

2.0mm Pitch Dip Plug Connector
Order Information:
KLS1-205B-XX-B
XX-No.of 04~80pin
Color: B=Black G=Gray

Material:
Housing: PBT UL94V-0, Black
Contacts: Brass
Plating:Au or Sn over 50u” nickel
Electrical Characteristics:
Current Rating: 1.0 AMP
Insulator Resistance: 1000M Ohm min.
Withstand Voltage: 500V AC / Minute
Contact Resistance: 20m Ohm max.
Operating Temperature: -40ºC~+105ºC
