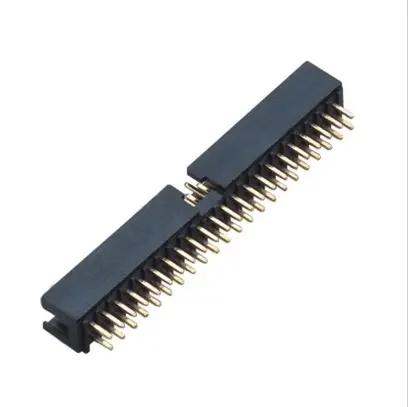

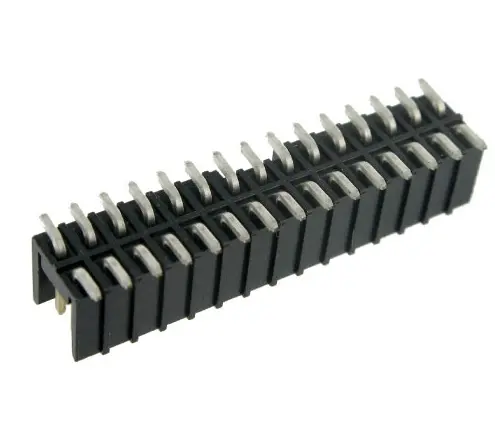

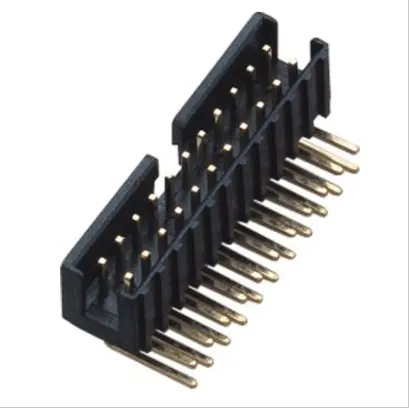

2.0mm Pitch Box Header Connector Height 5.7mm

Order Information
KLS1-202BB-XX-S-B-口
XX-No.of  06~64pin
S-Straight pin  R-Right Angle Pin   T-SMT Pin
B-Black  G-Gray   L-Blue
Material_NONE=PA6T   A=PBT  C=LCP

Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u” over 50u” nickel
Electrical Characteristics:
Current Rating: 2.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:500V AC/DC
Operating Temperature: -45ºC~+105ºC

KLS1-202BB.pdf
