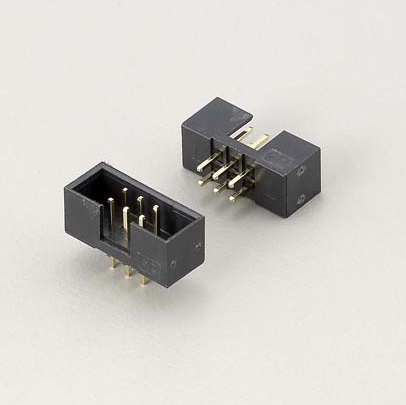

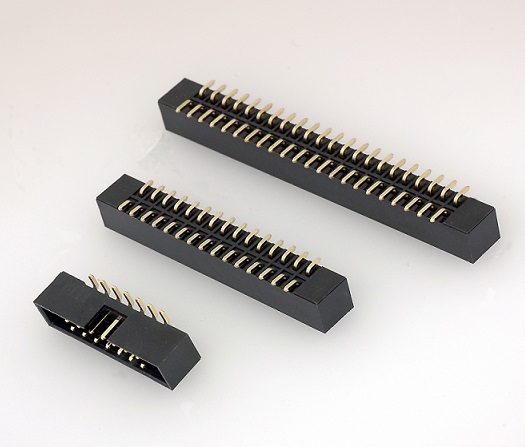

2.0mm Pitch Box Header Connector Height 5.7mm

Order Information
KLS1-202B-XX-S-B-口
XX-No.of 06~64pin

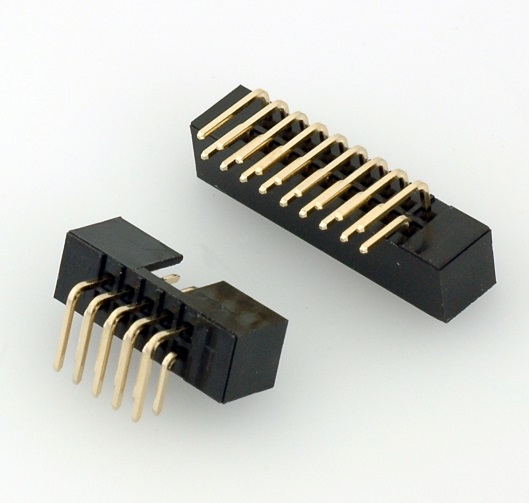

S-Straight pin R-Right Angle Pin T-SMT Pin
B-Black G-Gray L-Blue
Material:NONE=PA6T A=PBT C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u” over 50u” nickel
Electrical Characteristics:
Current Rating: 1.5 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 800M Ohm min.
Withstand voltage:400V AC/DC
Operating Temperature: -45ºC~+105ºC

KLS1-202B.pdf
