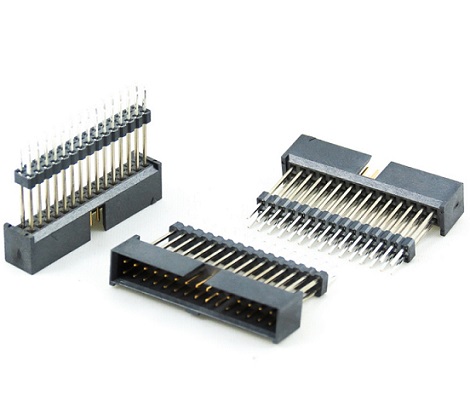

2.0mm Pitch Box Header Connector Height 4.8mm

Order Information
KLS1-202JA-XX-S-B-PBxPC-口
XX-No.of 06~64pin
S-Straight pin T-SMT Pin
B-Black G-Gray L-Blue
Size:PBxPC
Material:B=PA6T C=LCP
Material:
Housing: PA6T UL94V-0
Contacts: Brass
Plating:Gold 1u” over 50u” nickel
Electrical Characteristics:
Current Rating: 2.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:500V AC/DC
Operating Temperature: -45ºC~+105ºC

KLS1-202JA.pdf
