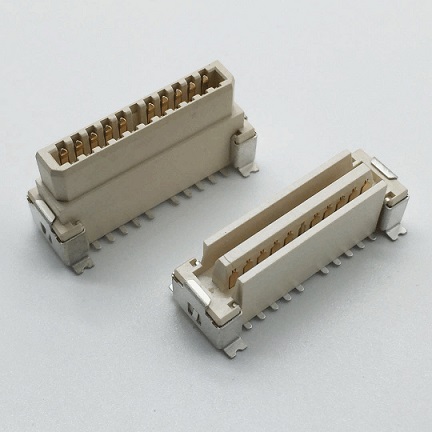

2.0mm Pitch Board to Board Connector

Material:
1. Housing: LCP High-Temp Thermoplastic,UL94V-0
2. Terminal: Phosphor Bronze,1u”Gold Flash Overall 50~100u”
Nickel Under Plated.

Specification:
1.Contact resistance: ≤100mΩ.
2.Insulation resistonce: ≥50MΩ.
3.Rated voltage: 100V AC DC.
4.Rated current: 1.0A AC DC.
5.Withstand Voltage: 250V AC/Minute.
6 Temperature Range: -40°C~+ 85°C.

KLS1-B0120.pdf
