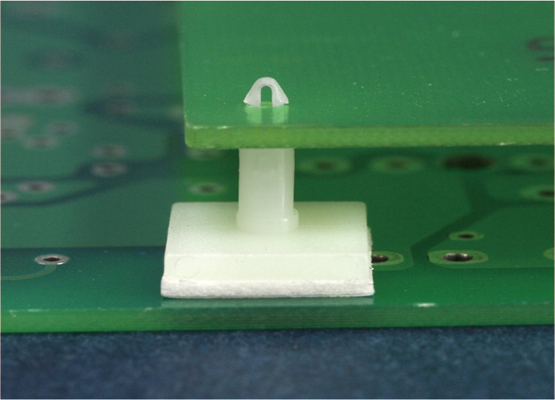

2.0mm Ｗith Adhesive Tape SPACER SUPPORT
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools
| P/N | A | UPPER | Color | Packing | |
| PCB Hole | PCB THICKNESS | ||||
| mm | mm | mm | pcs | ||
| L-KLS8-0261-BT-05 | 4.8 | 2.0 | 1.6 | Natural | 1000 |
| L-KLS8-0261-BT-06 | 6.4 | 2.0 | 1.6 | Natural | 1000 |
| L-KLS8-0261-BT-08 | 8.0 | 2.0 | 1.6 | Natural | 1000 |
| L-KLS8-0261-BT-10 | 9.5 | 2.0 | 1.6 | Natural | 1000 |
| L-KLS8-0261-BT-11 | 11.1 | 2.0 | 1.6 | Natural | 1000 |
| L-KLS8-0261-BT-13 | 12.7 | 2.0 | 1.6 | Natural | 1000 |
| L-KLS8-0261-BT-16 | 15.9 | 2 | 1.6 | Natural | 1000 |
| L-KLS8-0261-BT-19 | 19.1 | 2 | 1.6 | Natural | 1000 |
